RayVio Negotiated Sale (Buy Now) followed by Global Online Auction
Featured Assets
- Wastech Acid Nuetralizer
- Ocean Optics Spectrometer UV-Vis
- Riber Epi Reactor (Molecular beam Epitaxial) (w/ Options Over $1,000,000)
- Riber EPI Reactor (Molecular beam Epitaxial) (w/Options Over $1,000,000)

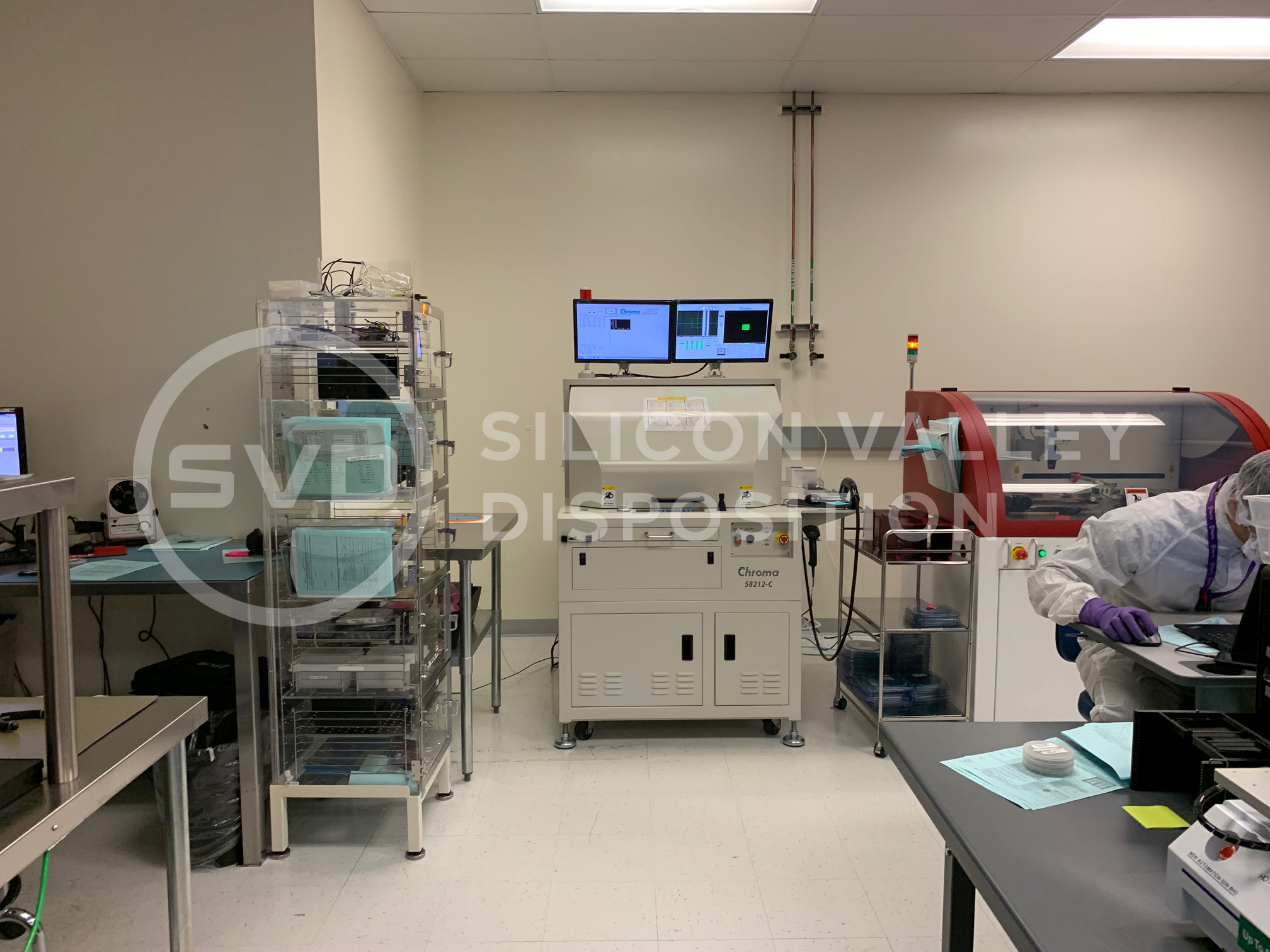

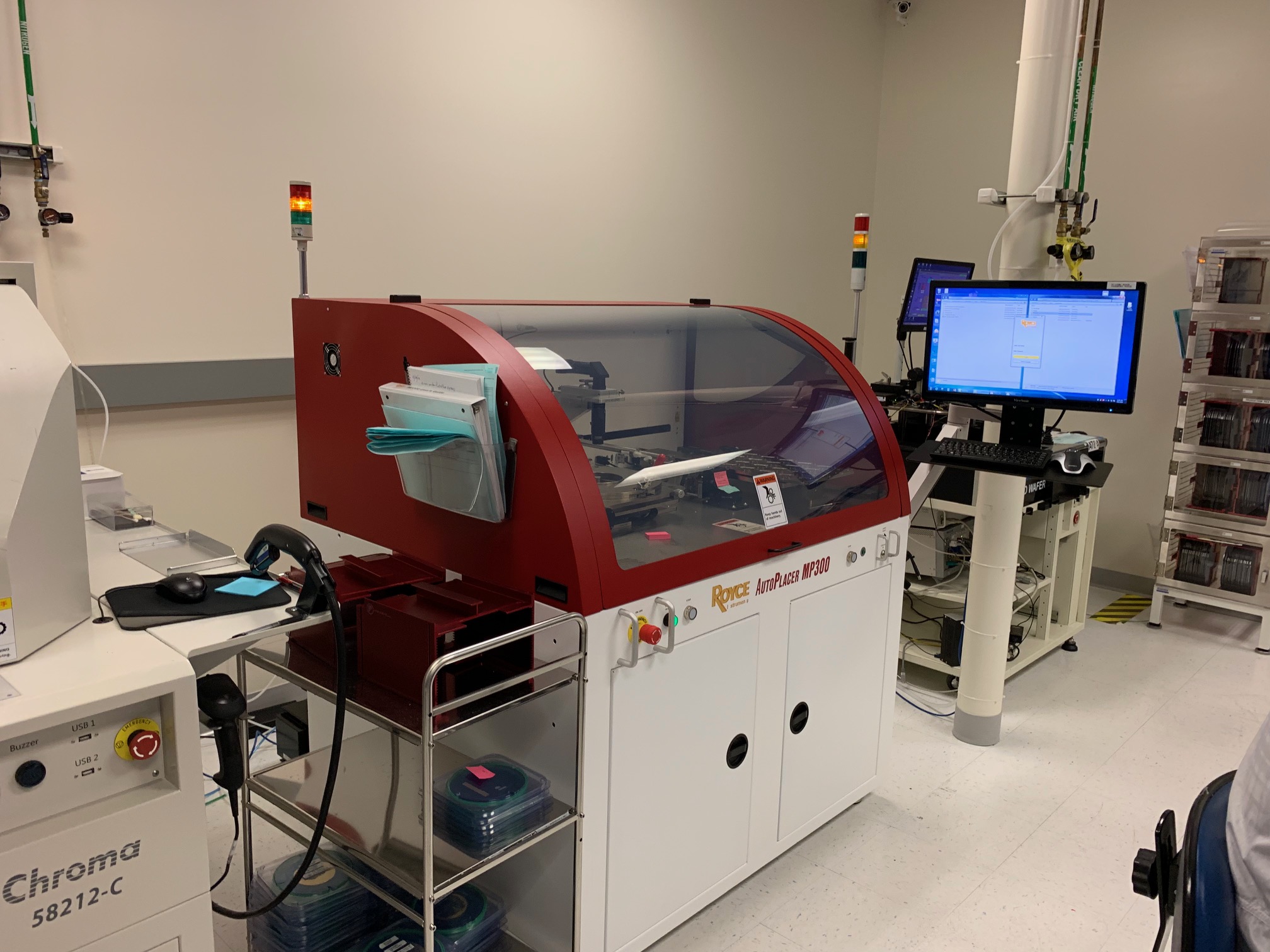

- Chroma Aotoprober Model 58212-C

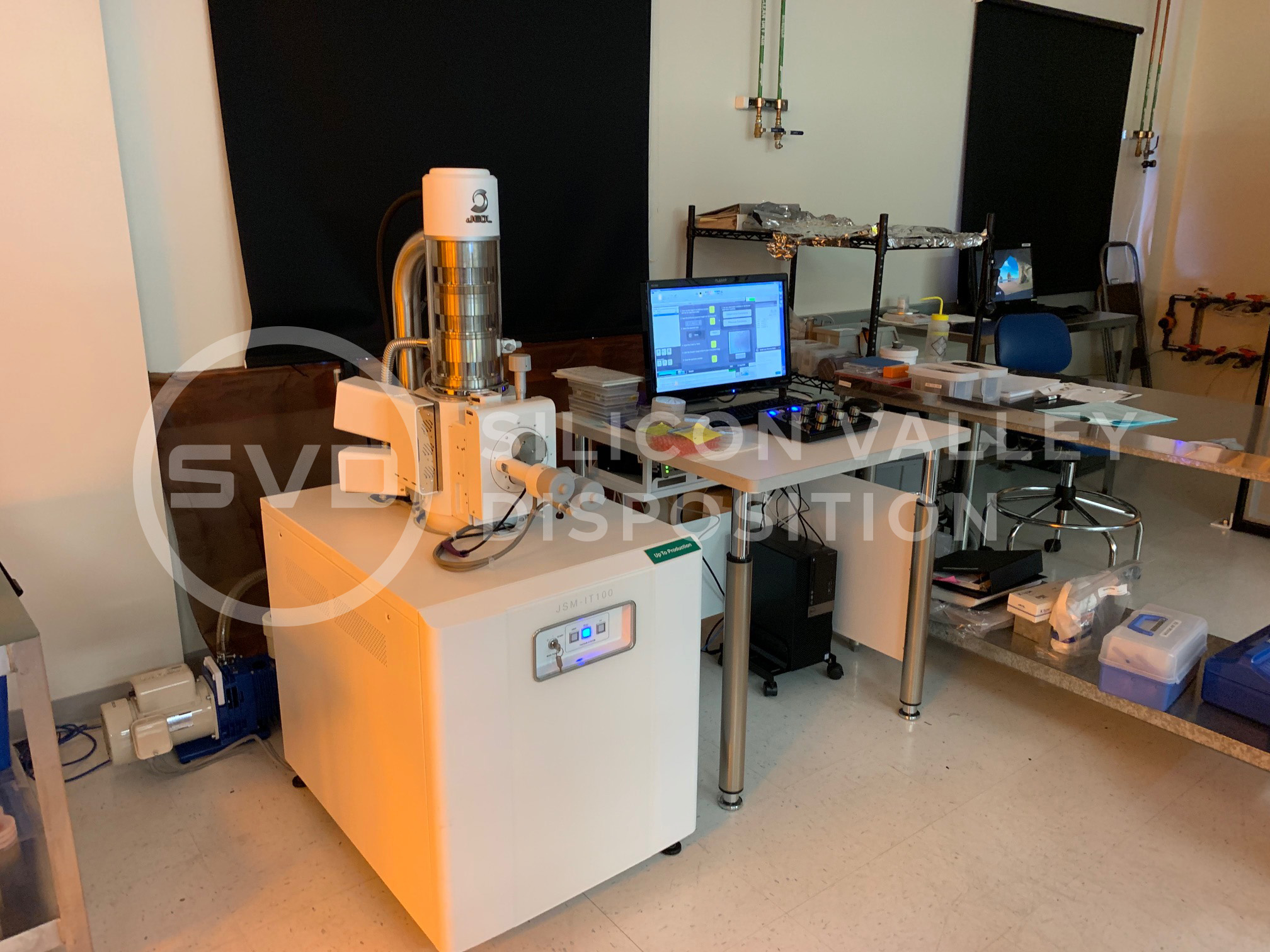

- Joel Scanning Electron Microscope Model JSM-IT100

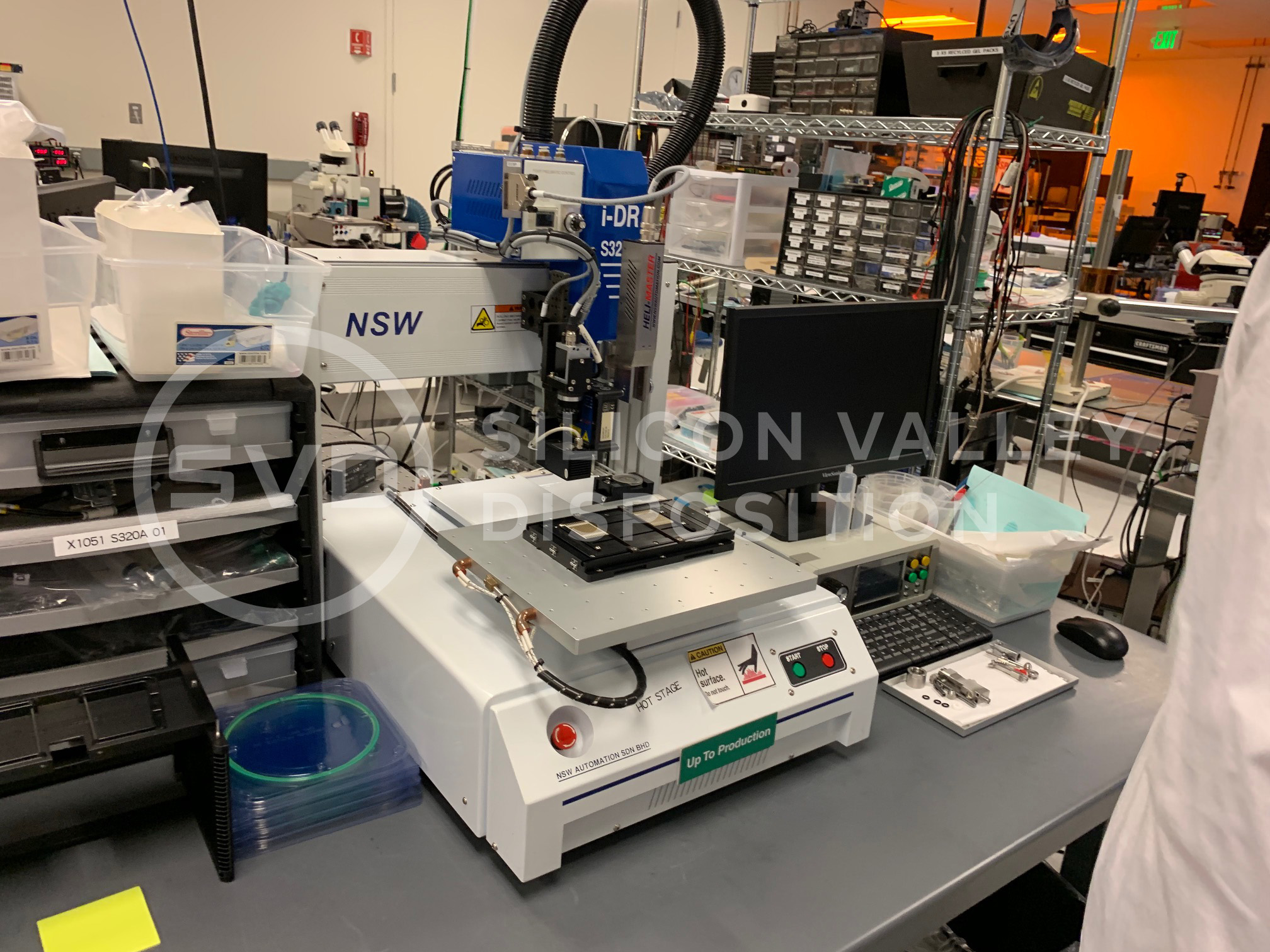

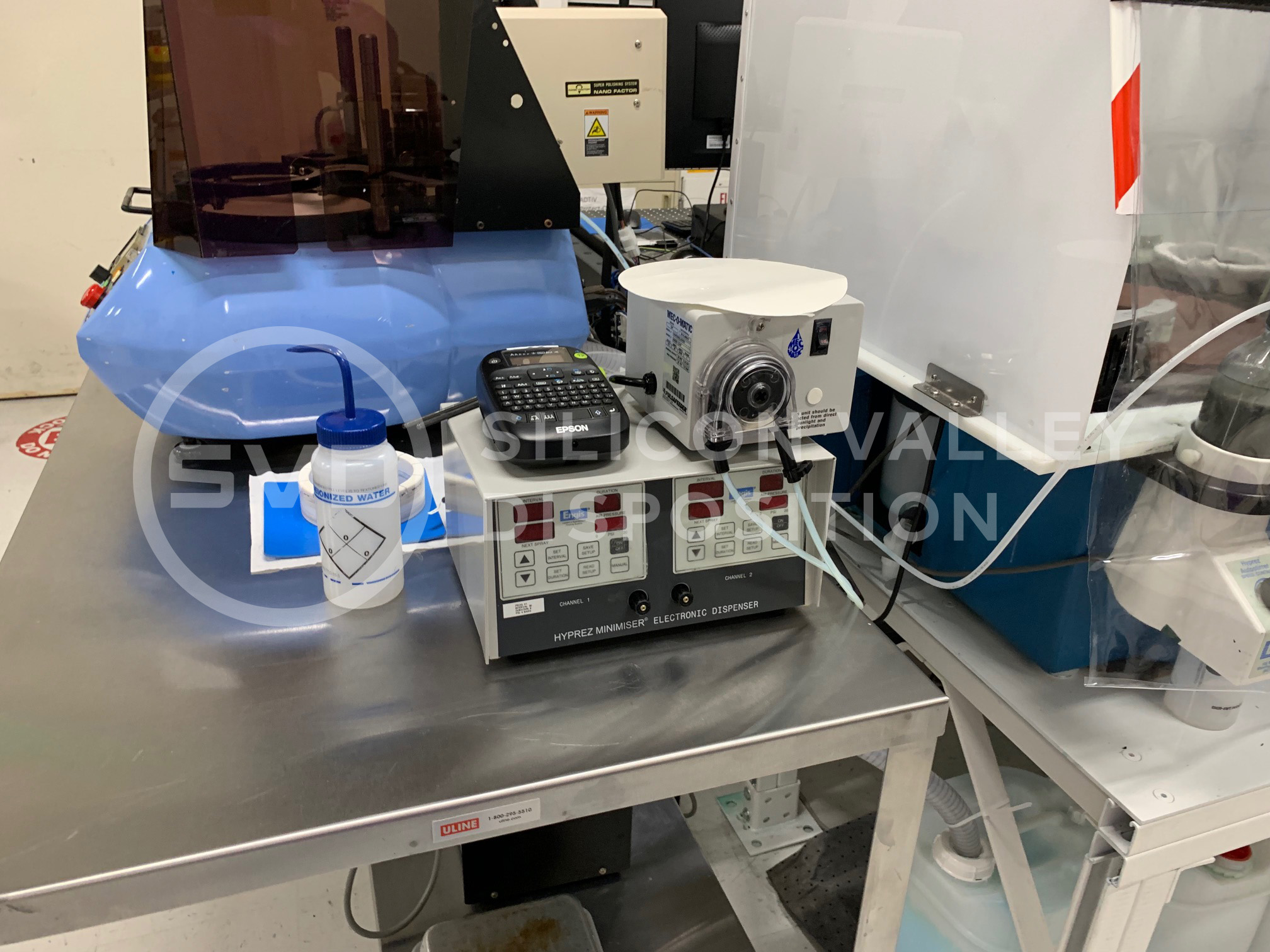

- NSW Automated Dispenser

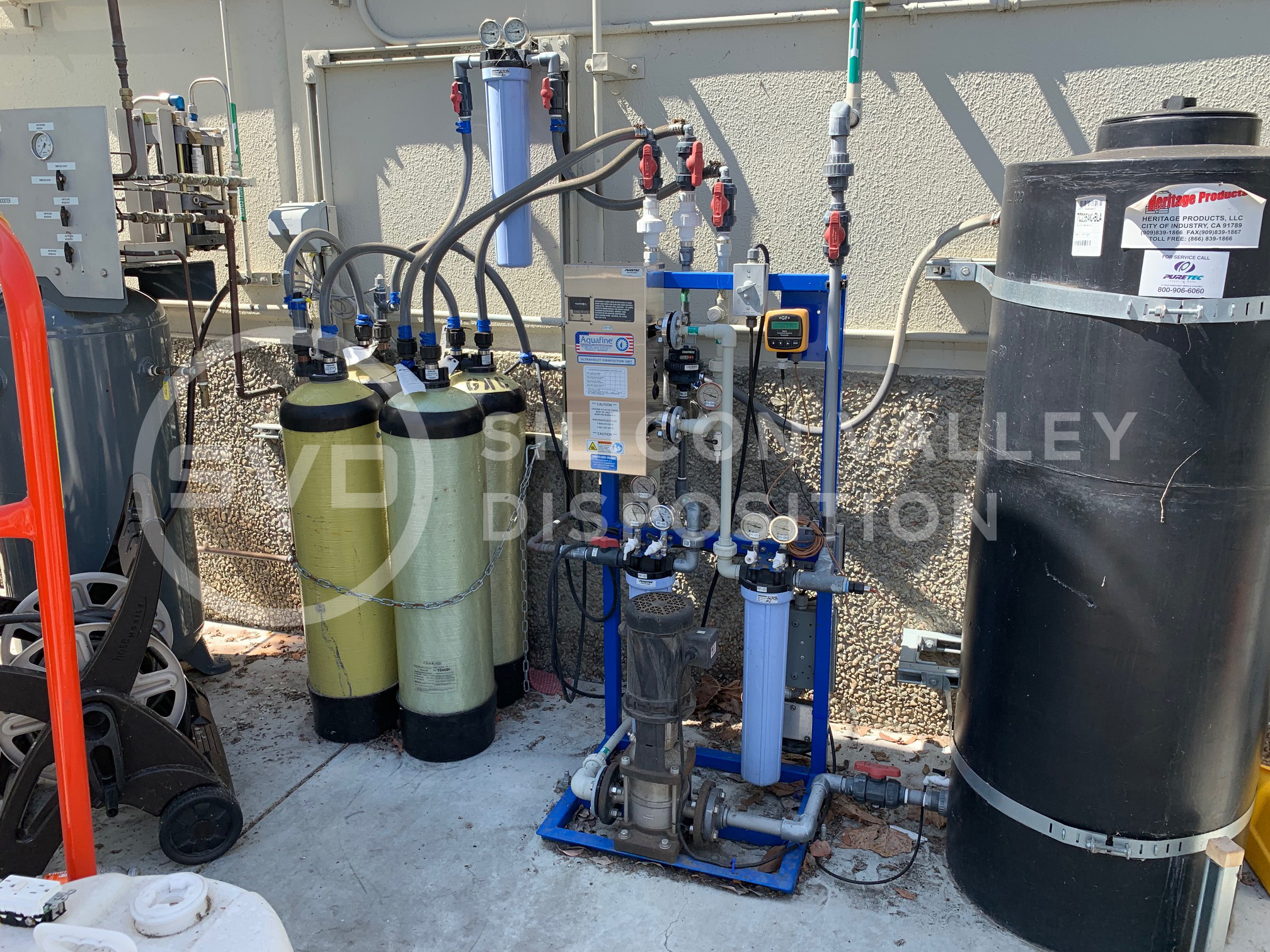

- ADT Water Recycling System

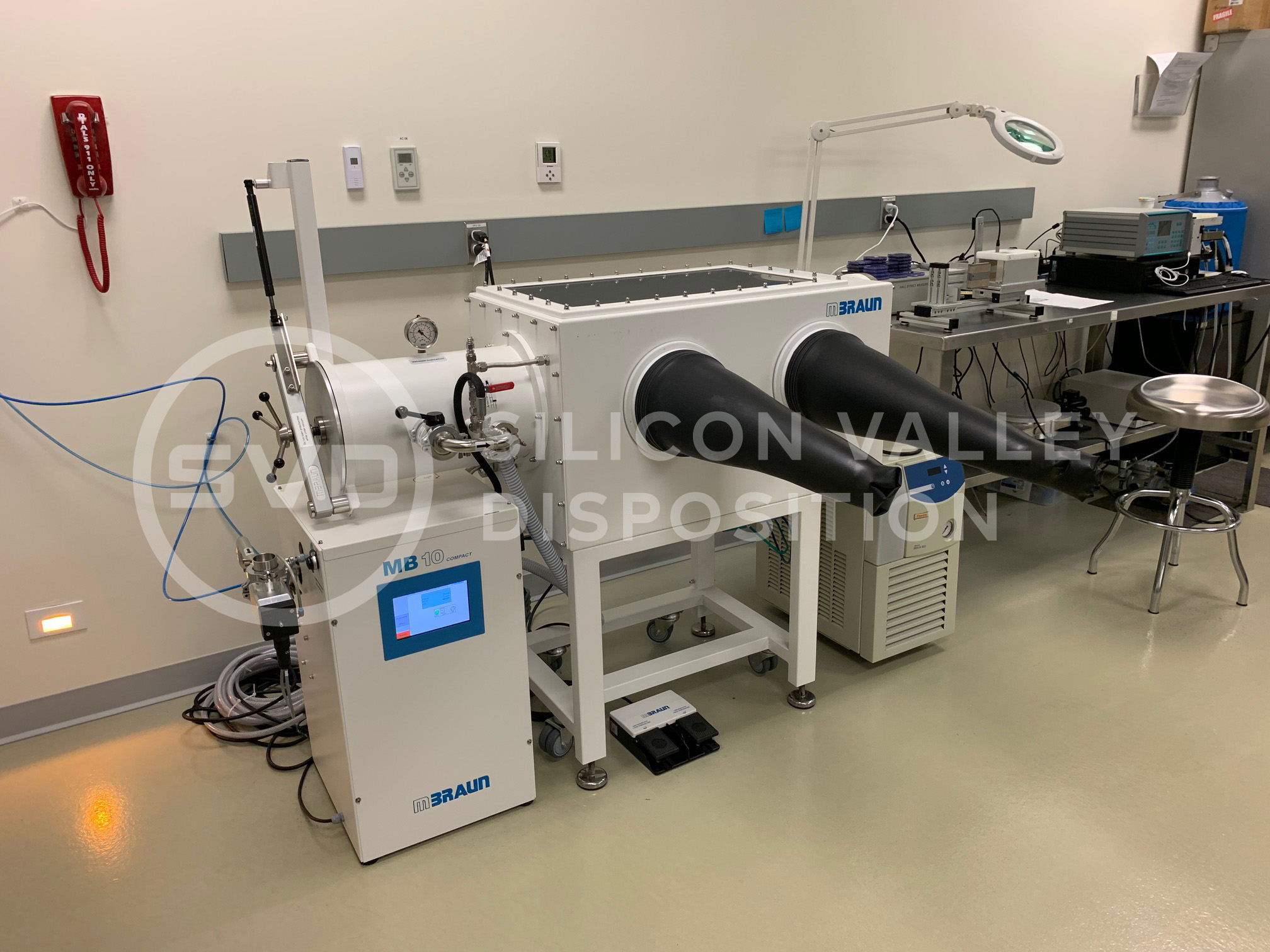

- Braun Glove Box
- Oxford Instruments ICP Plasmalab 100

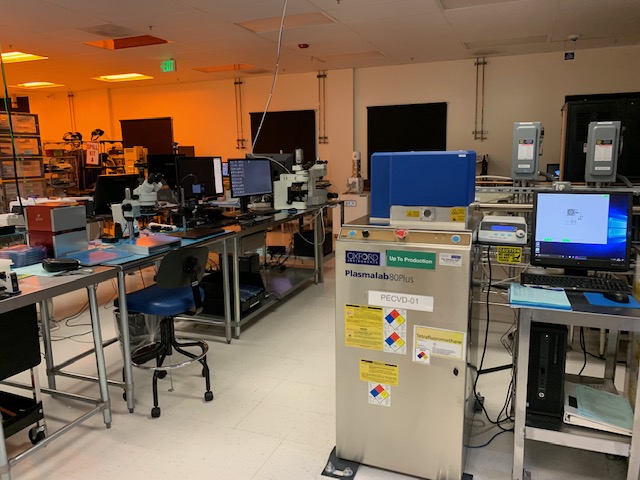

- Oxford Instruments PECVD Plasmalab 80 Plus

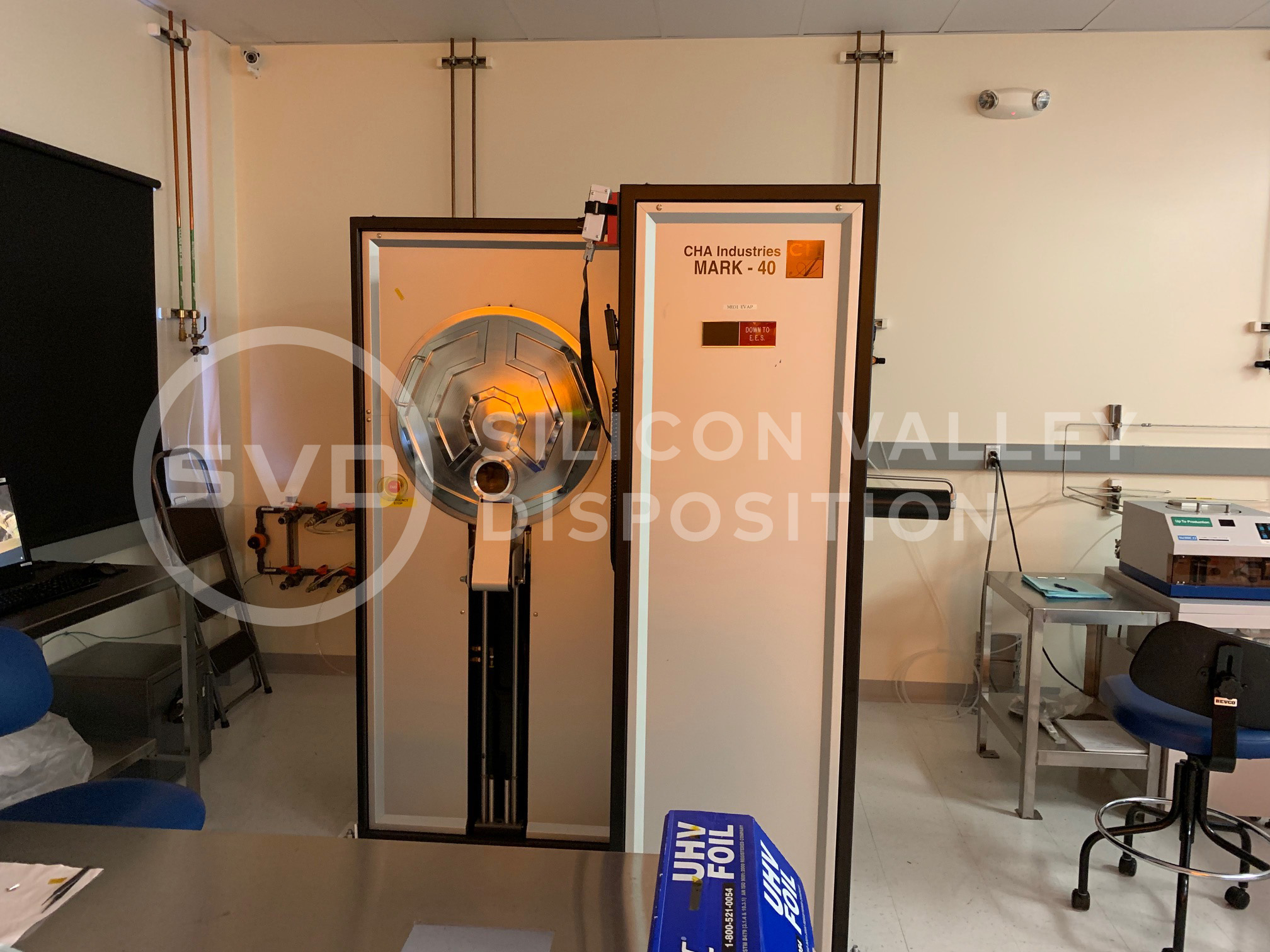

- CHA Industries Mark – 40

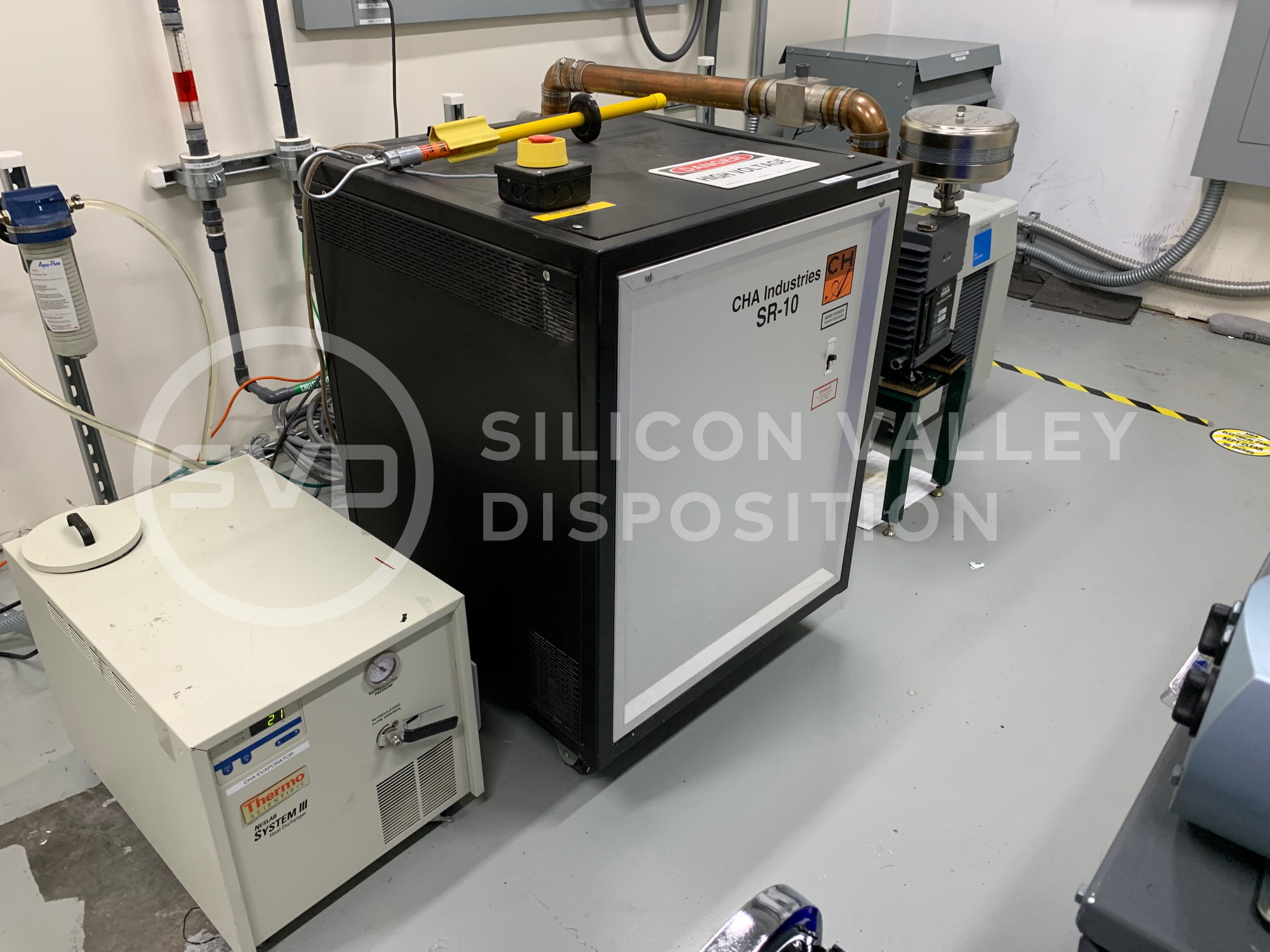

- CHA Power Supply SR10

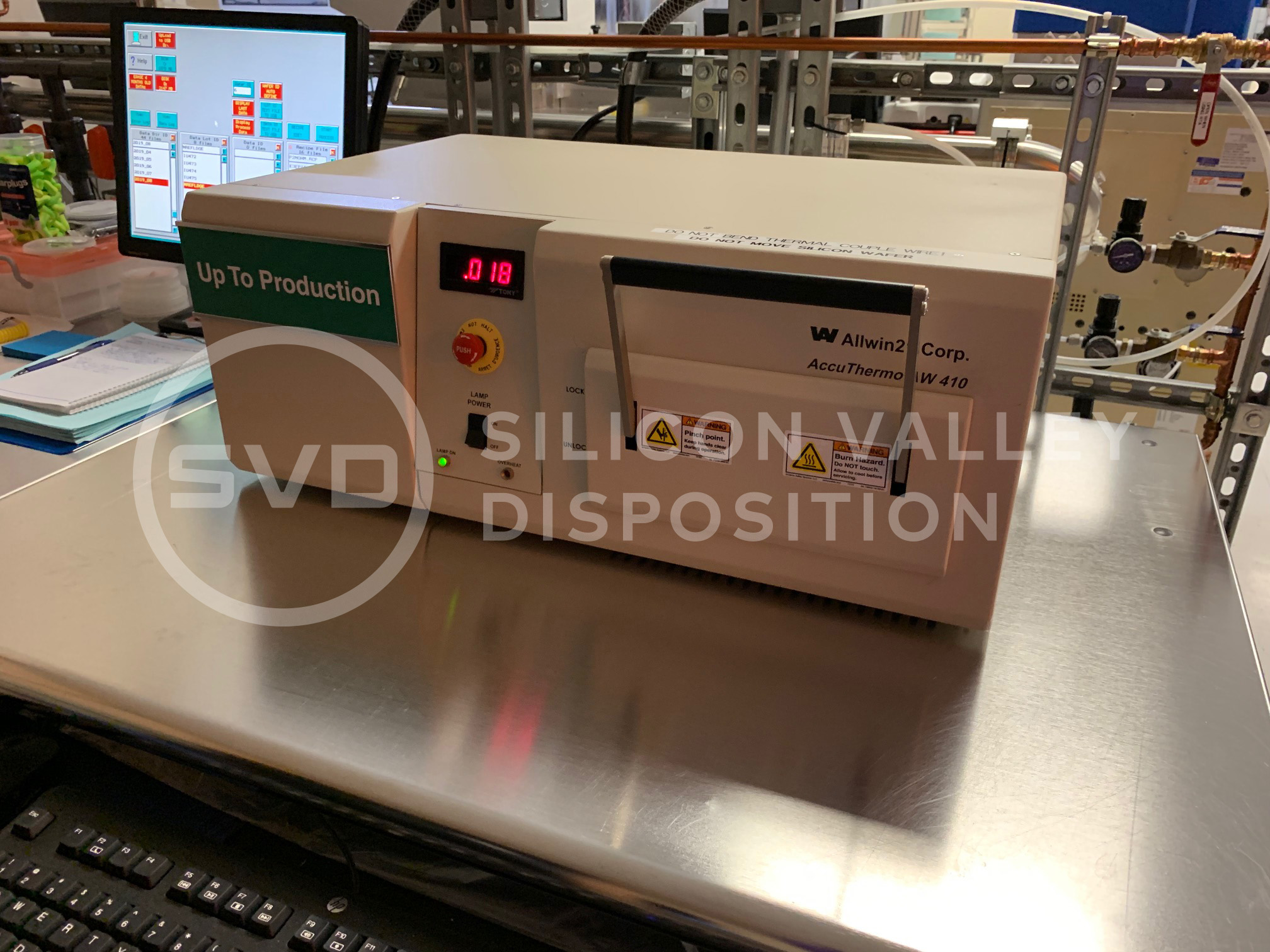

- Allwin2 Accutherm AW410

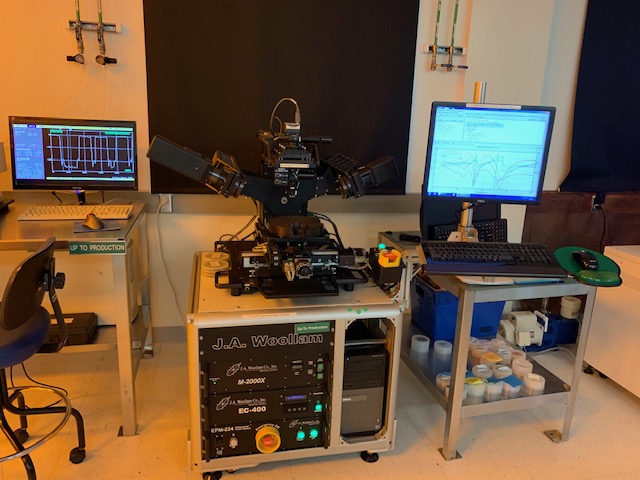

- J.A. Woollam Spectroscopic Ellipsometer M-2000x
- Bruker Dimension Icon Automatic Force Microscope

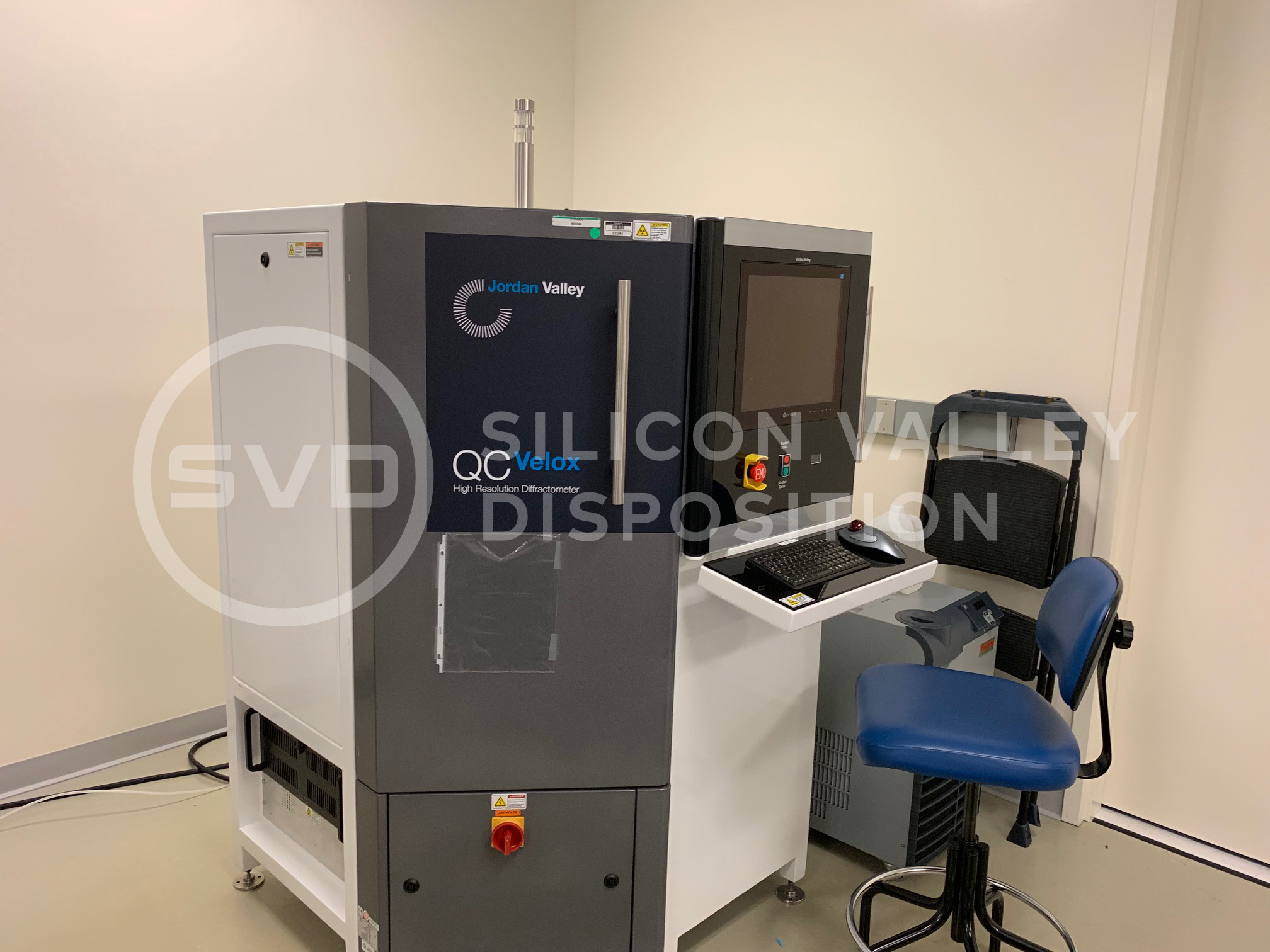

- Jordon Valley Diffractometer Model QC Velox
- (2) Karl Suss Bonders Model MA4

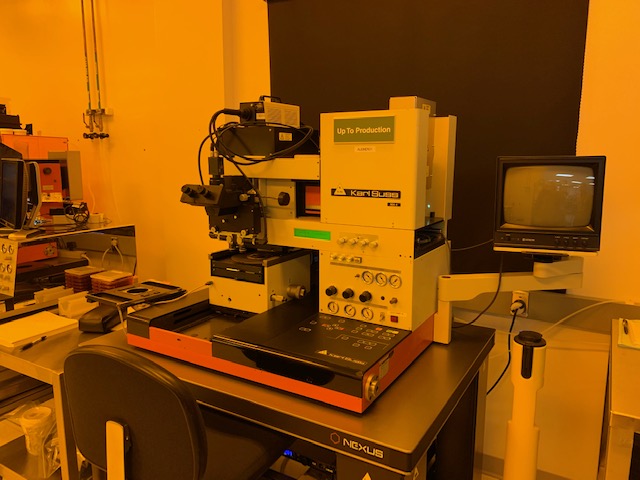

- Karl Suss Model MA6

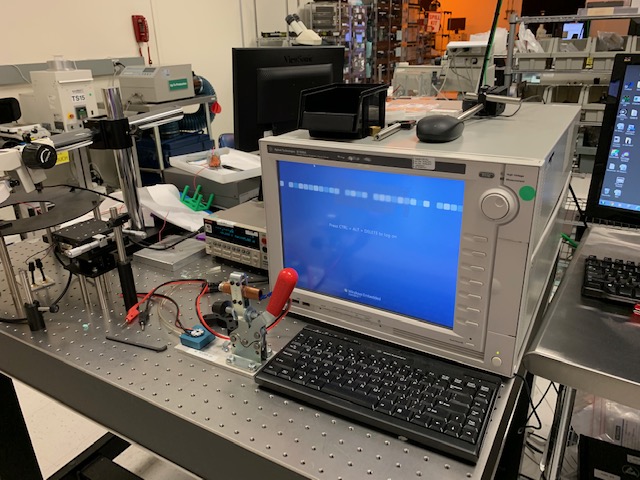

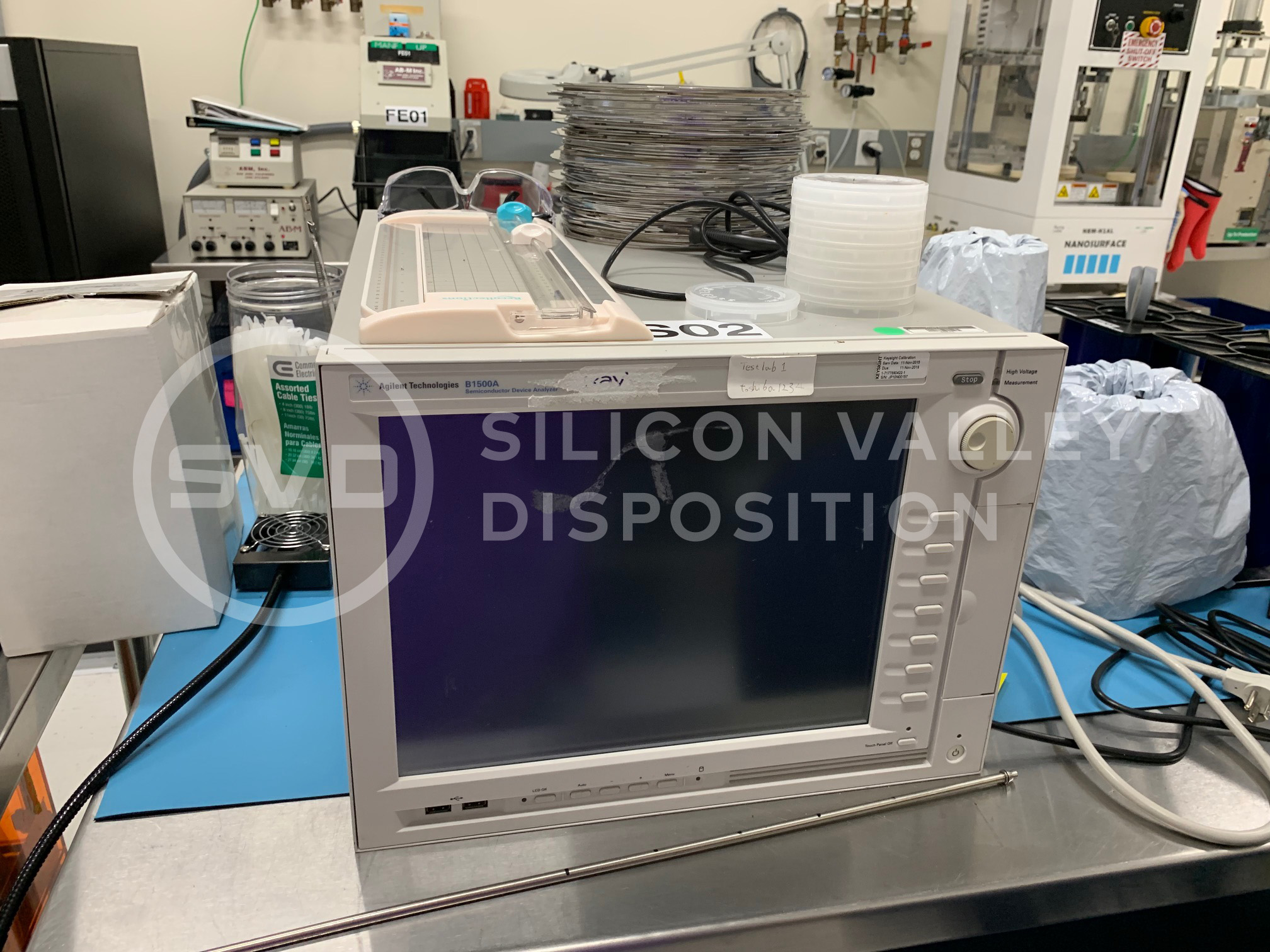

- Agilent Power Analyzer/Curve Tracer Model B1505A
- Agilent Semiconductor Device Measurement Model B1500A

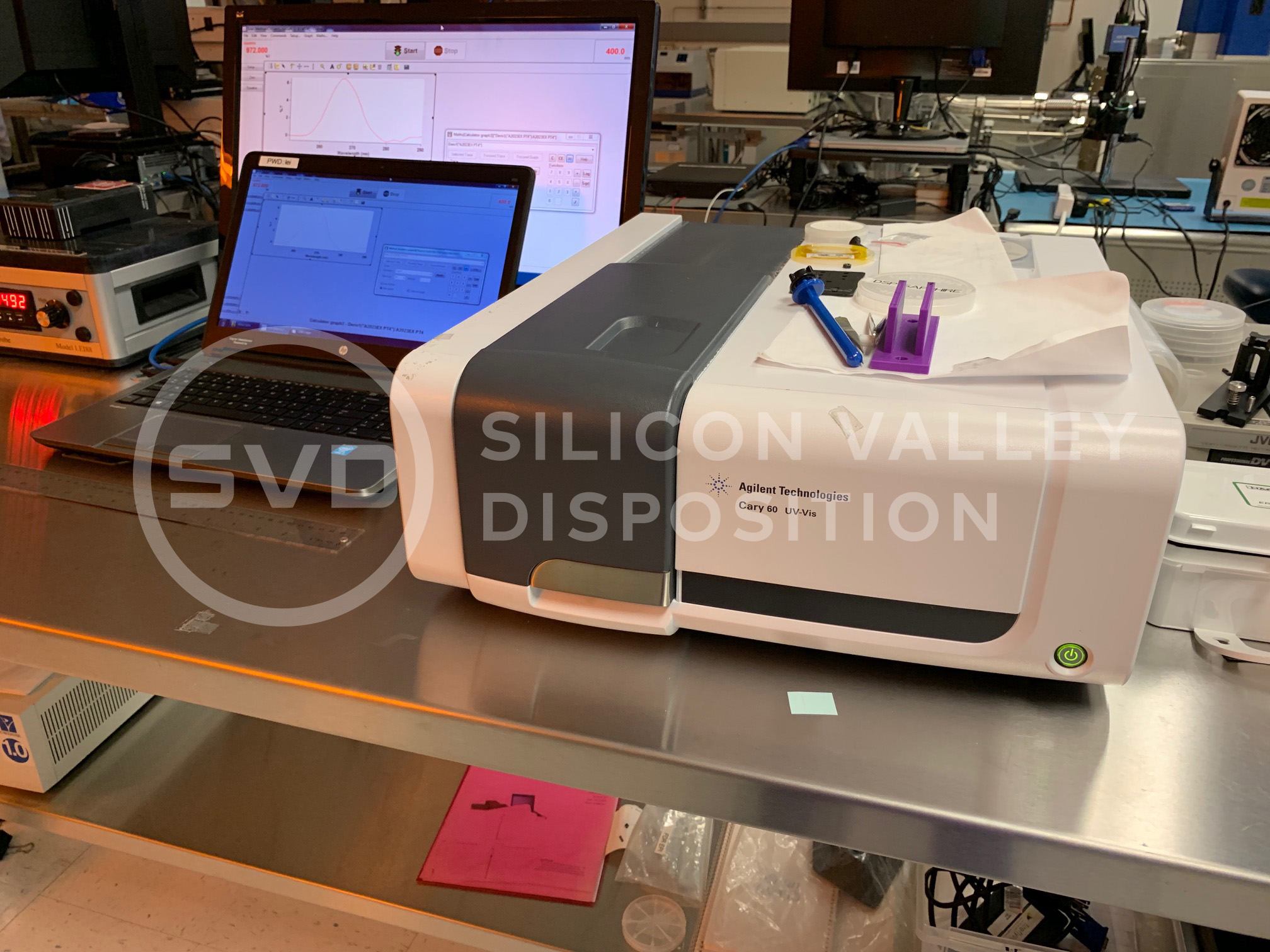

- Agilent Cary 60 UV-Vis

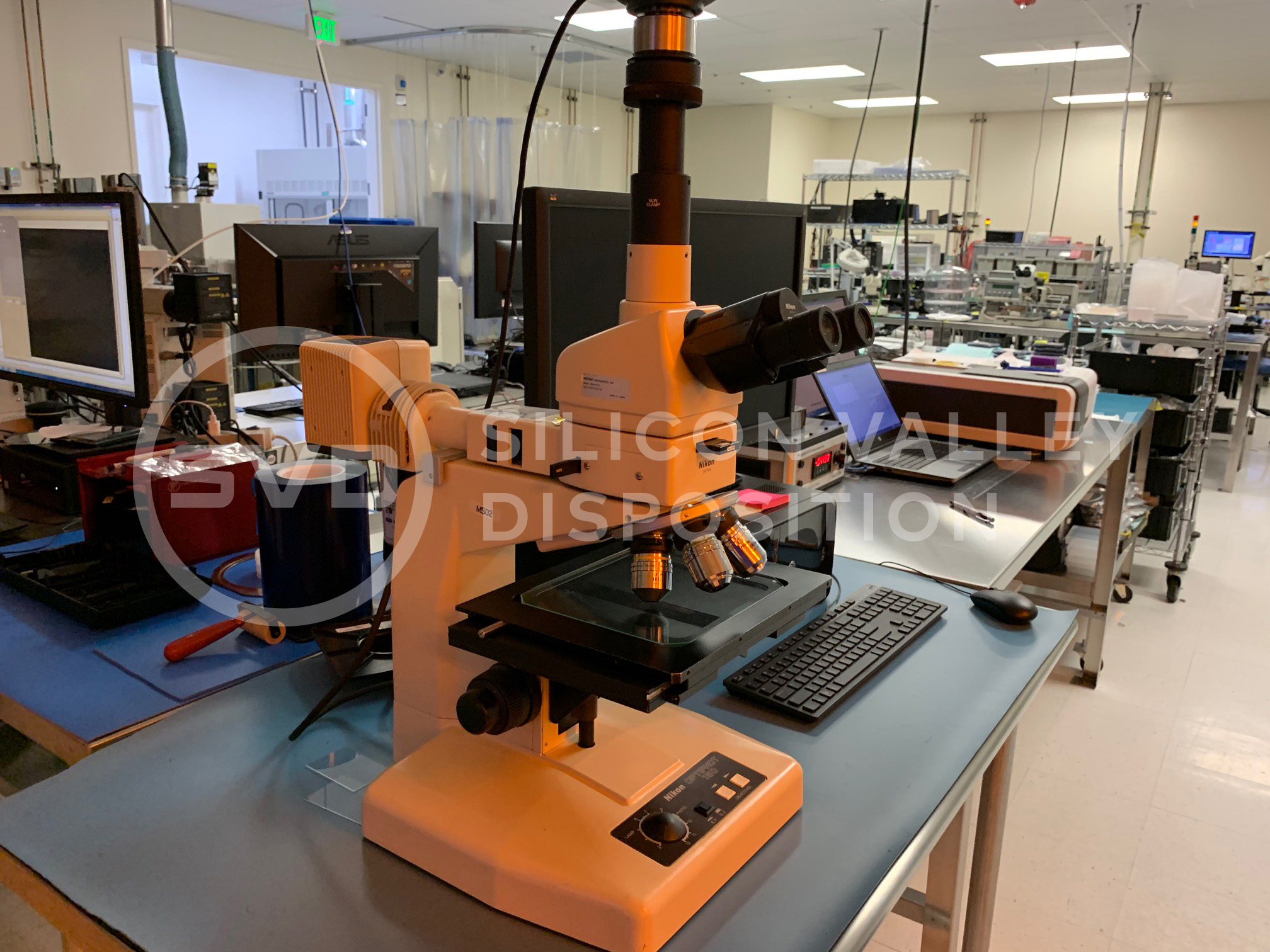

- Nikon Microscope Optiphot 150

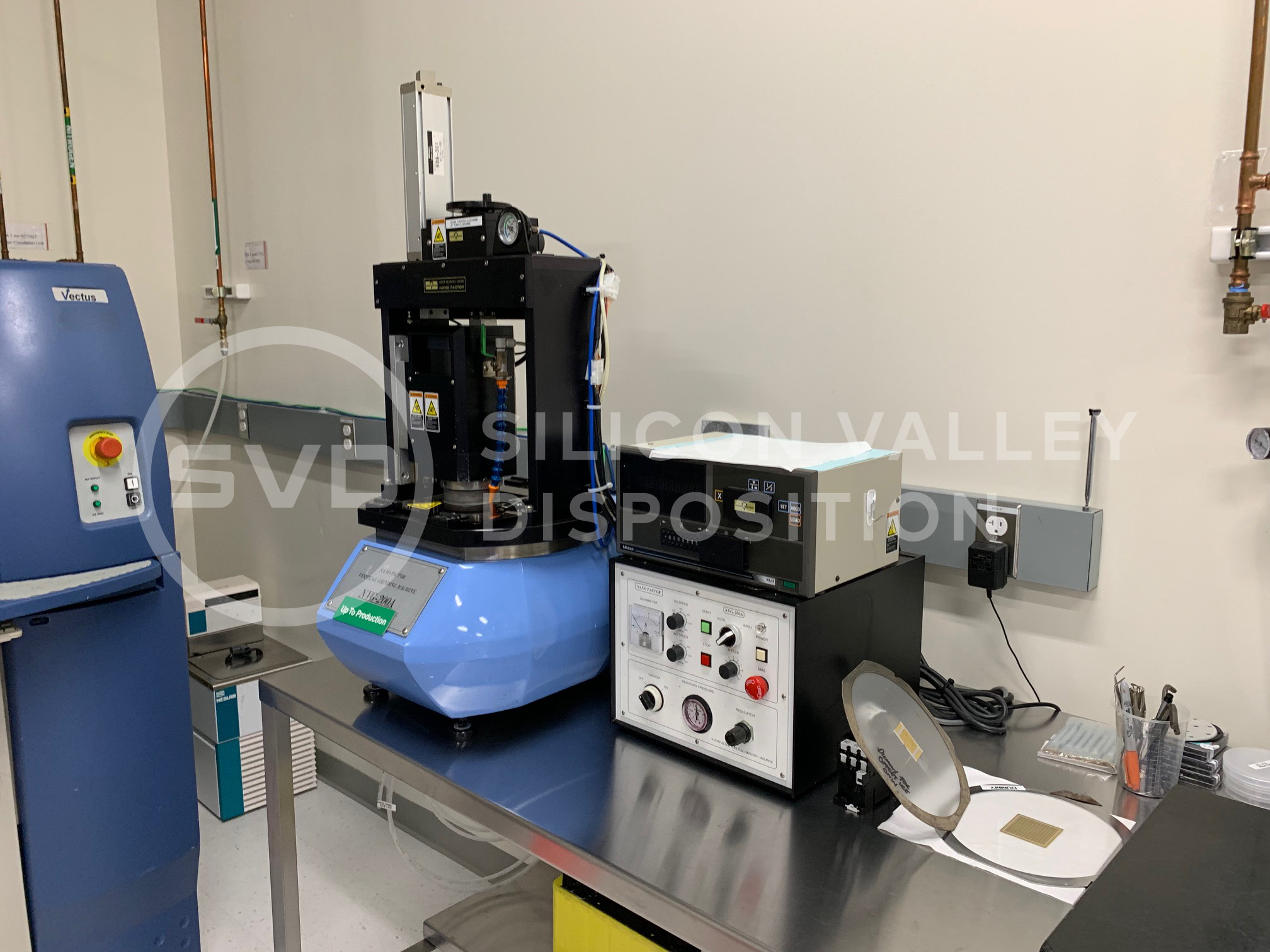

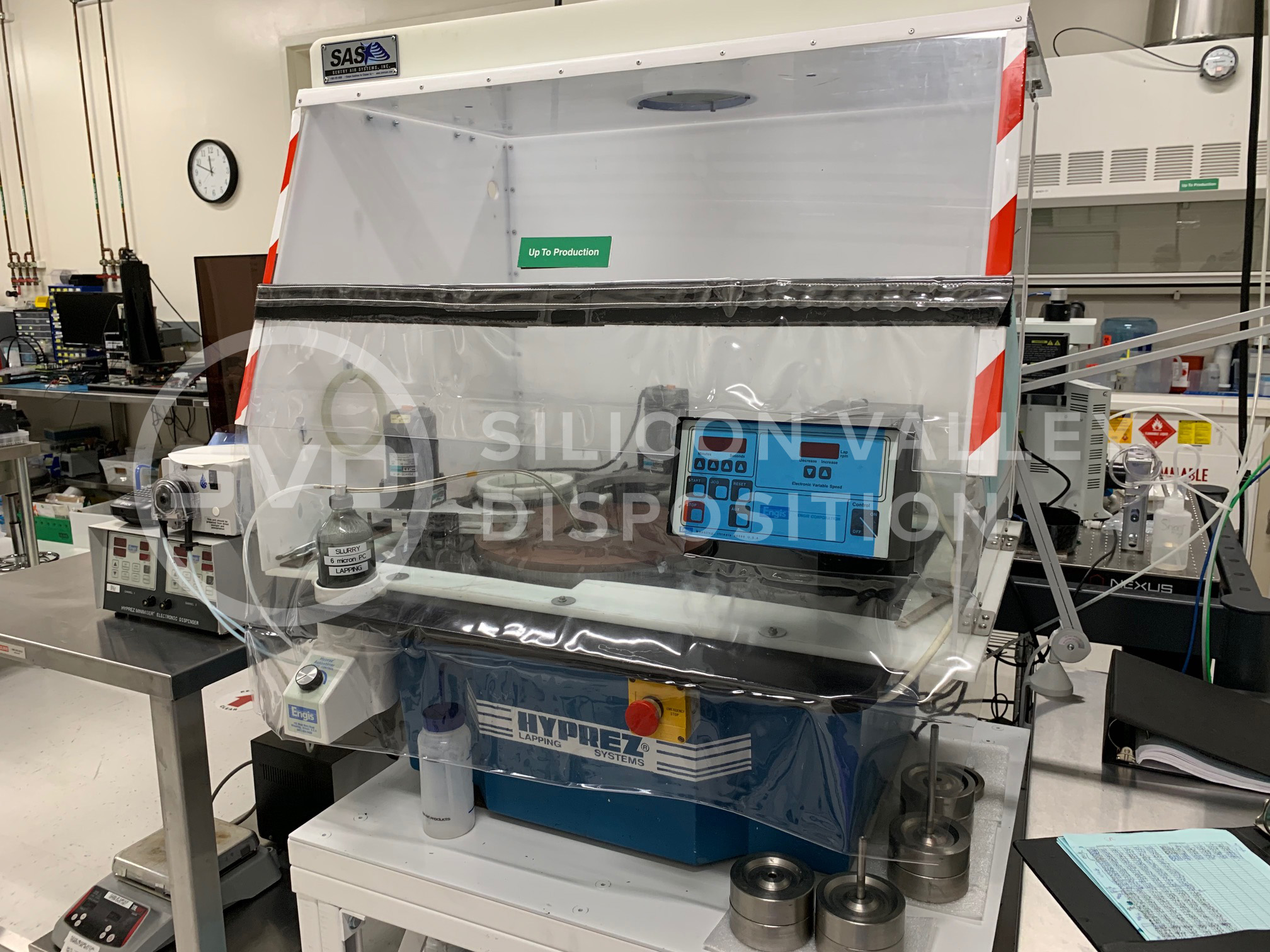

- (2) Nano Factor Precision Lapping Machines

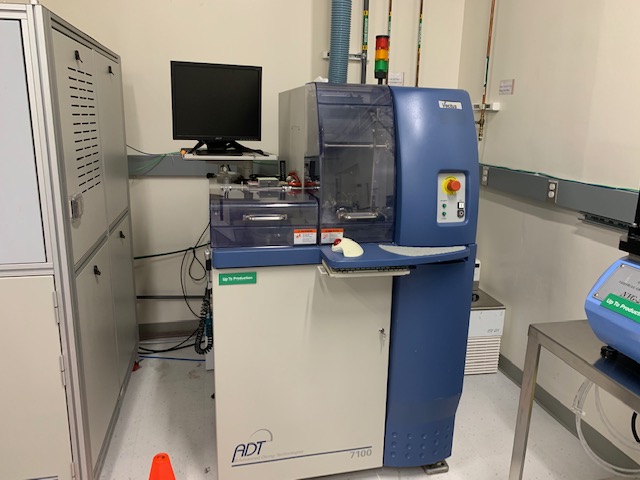

- ADT Dicing Saw Model 7100
- Semitool Spin Rinse Dryer
- Pyrometer Lens System Model 900NM
- Olympus Microscope MX61
- Olympus Microscope BX51M

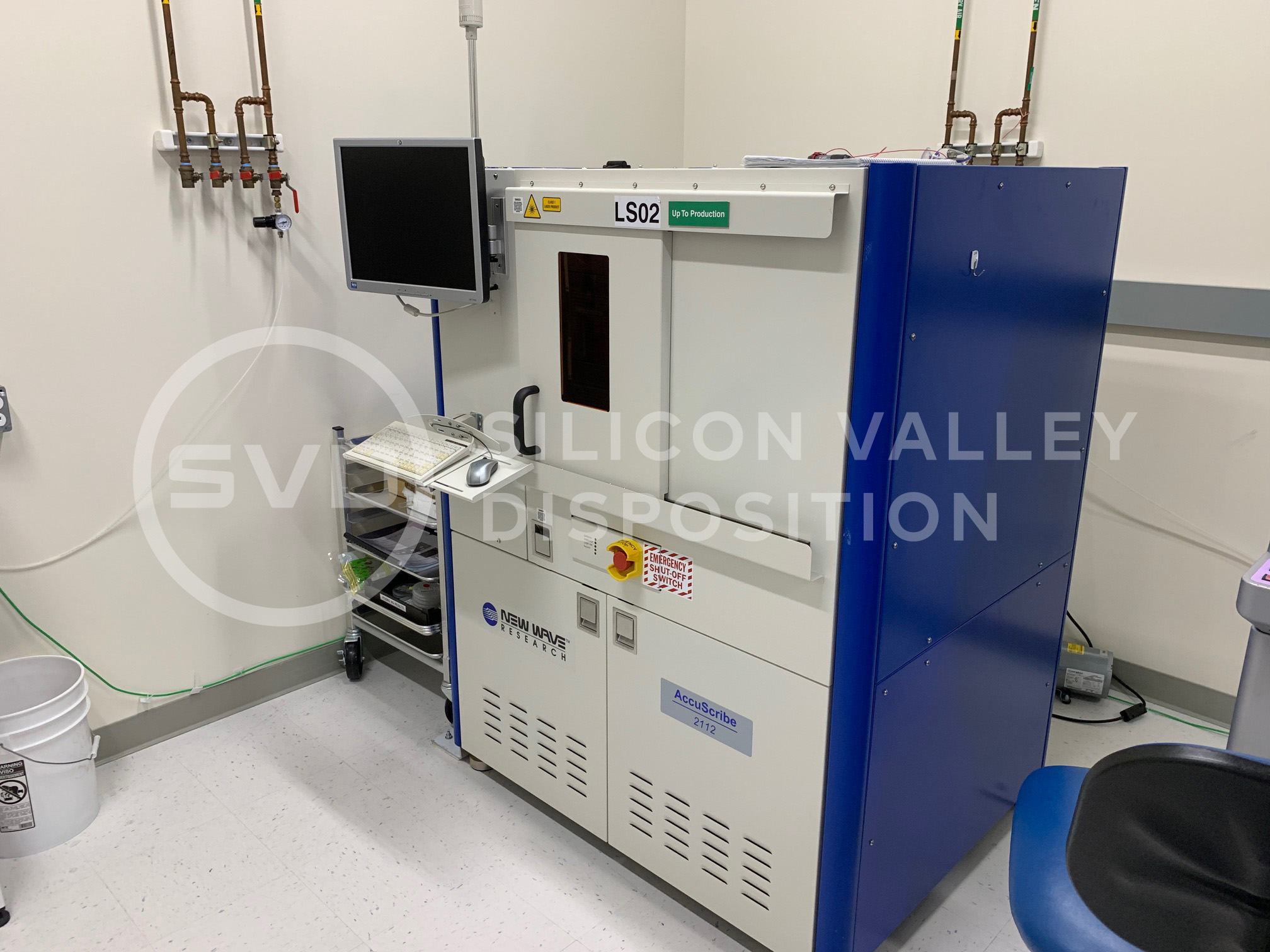

- New Wave Model AccuScribe 2112

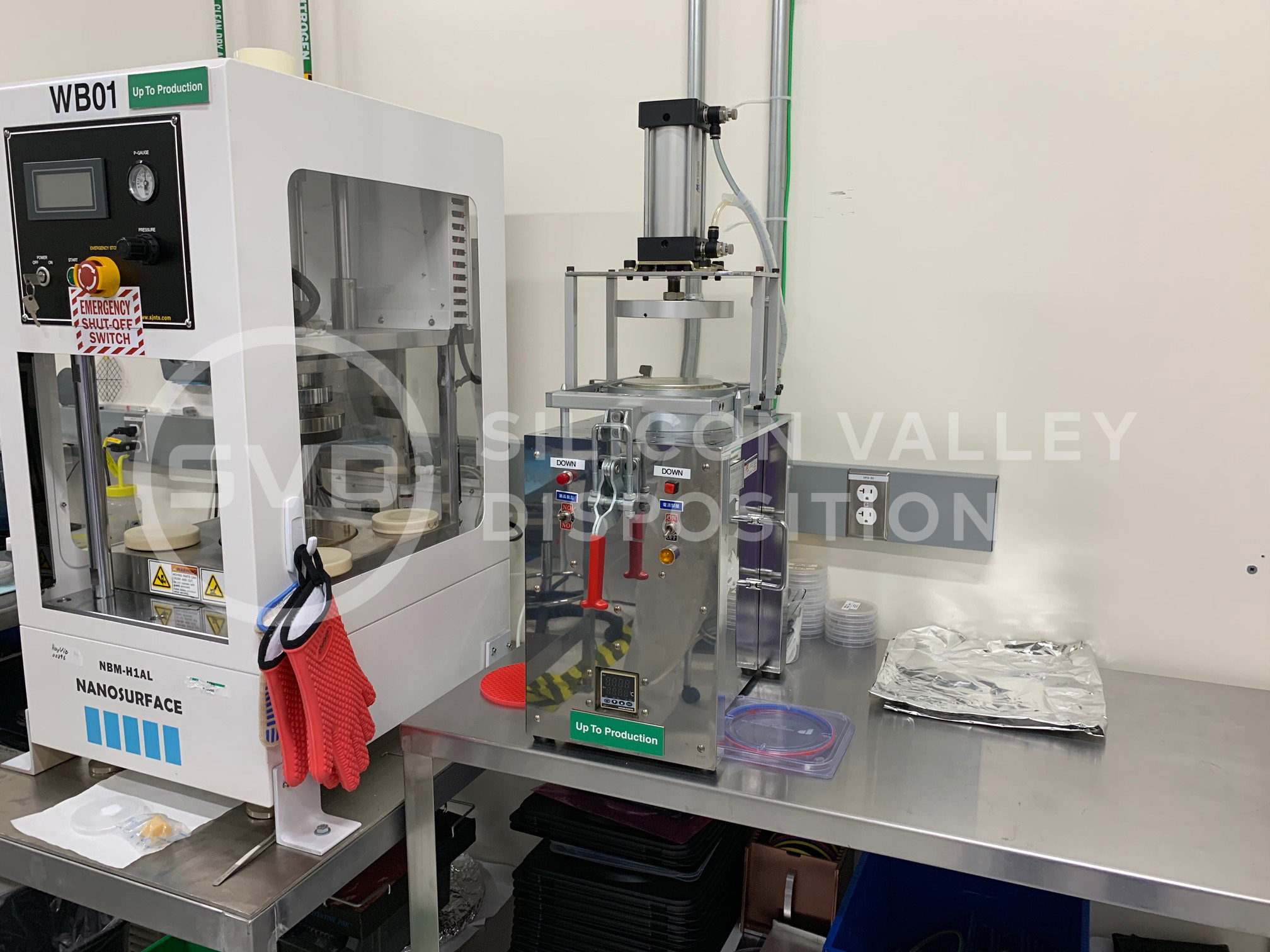

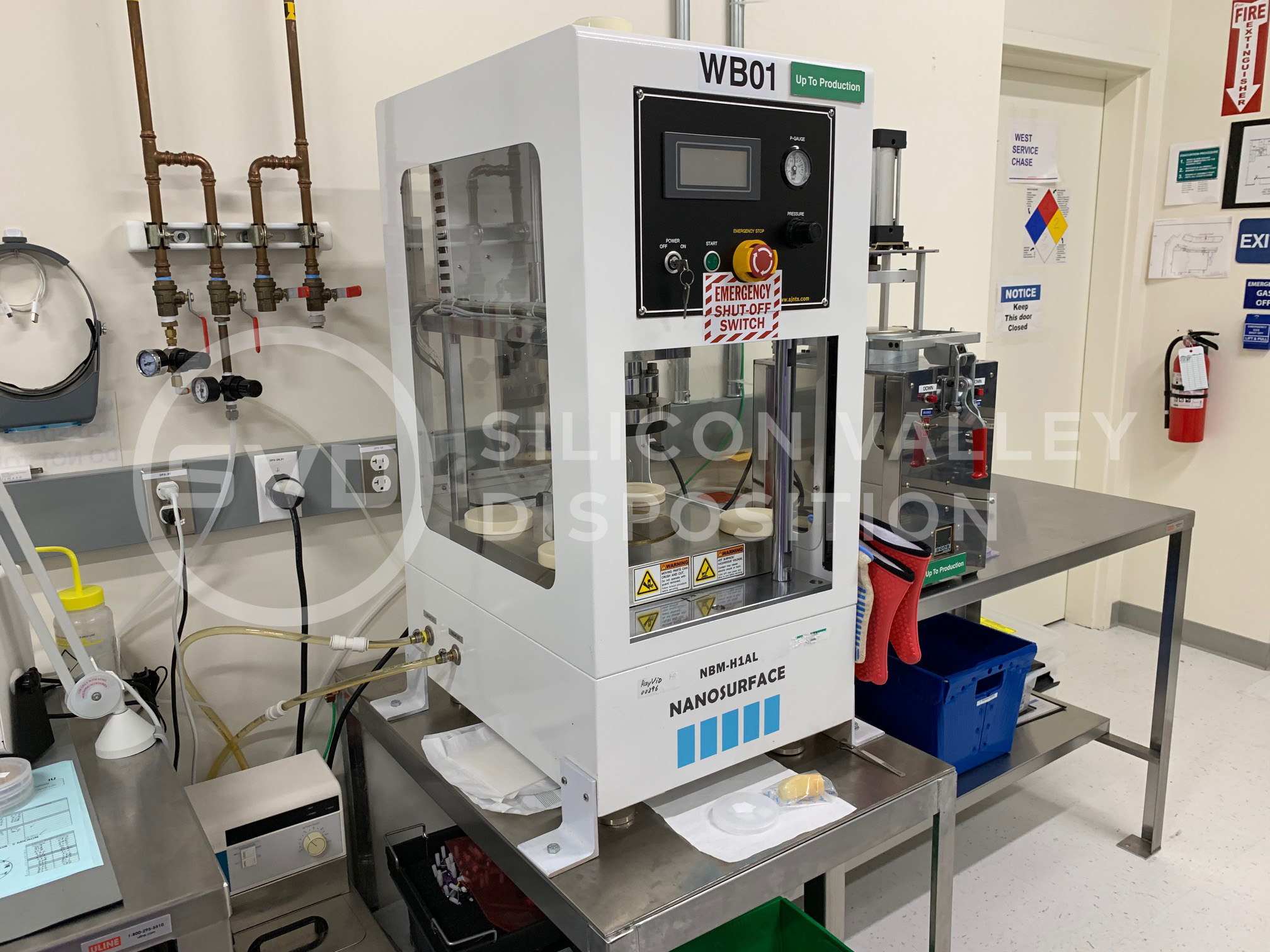

- Nanosrface NBM-H1AL
- Tencor Alpha Step 500

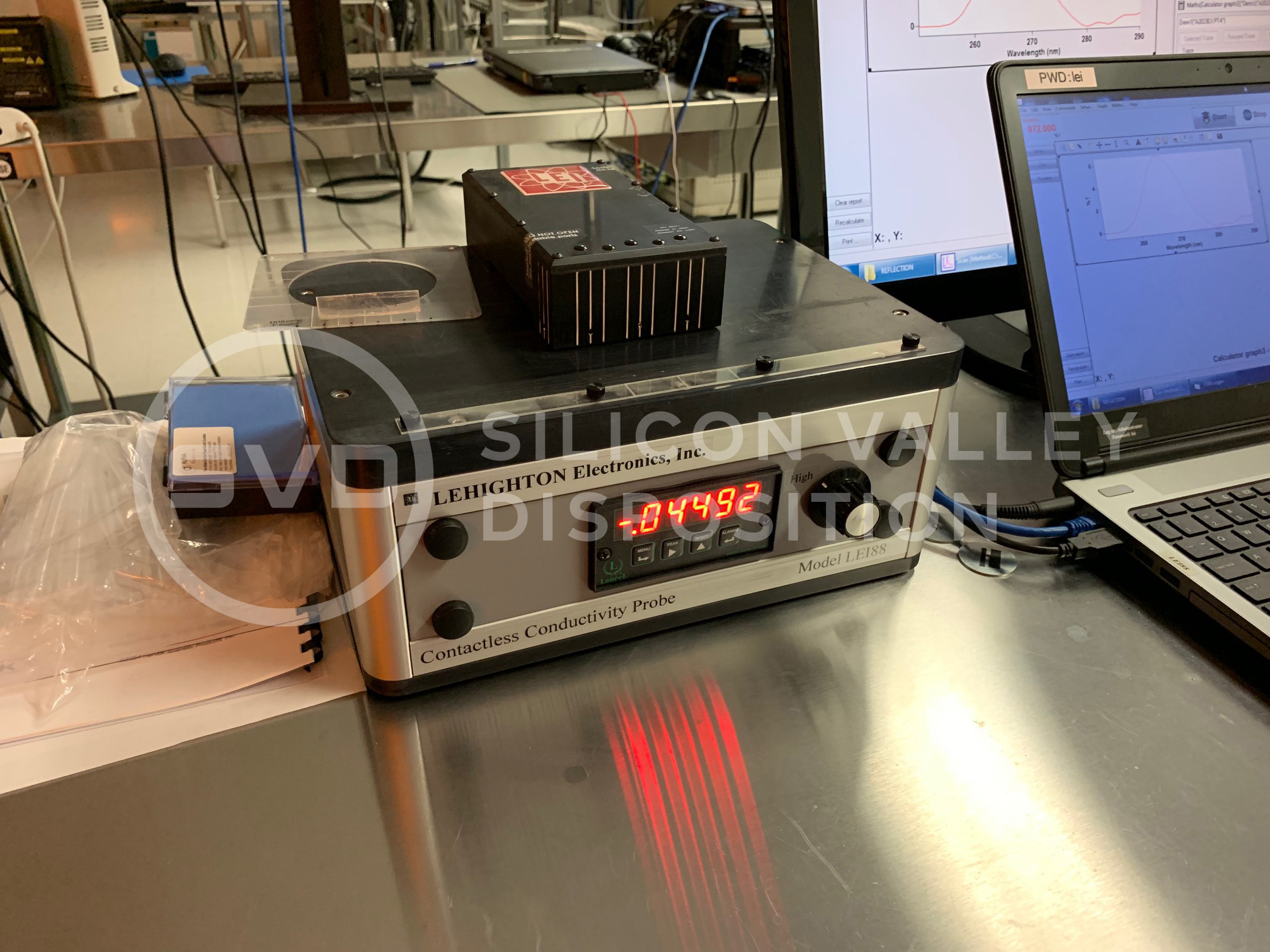

- Lehighton Electronics Contactless Conductivity Probe

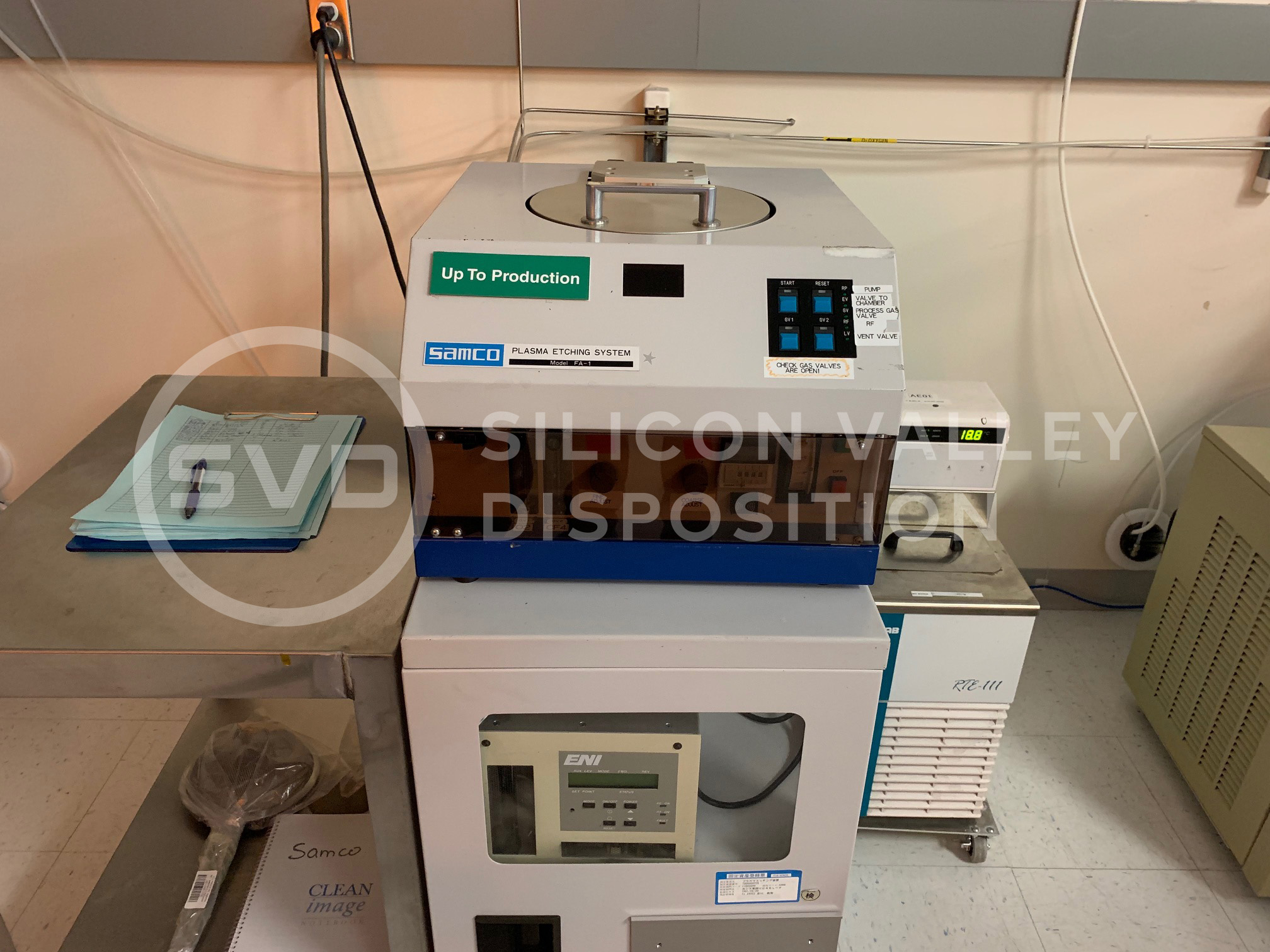

- Samco Plasma Etching System

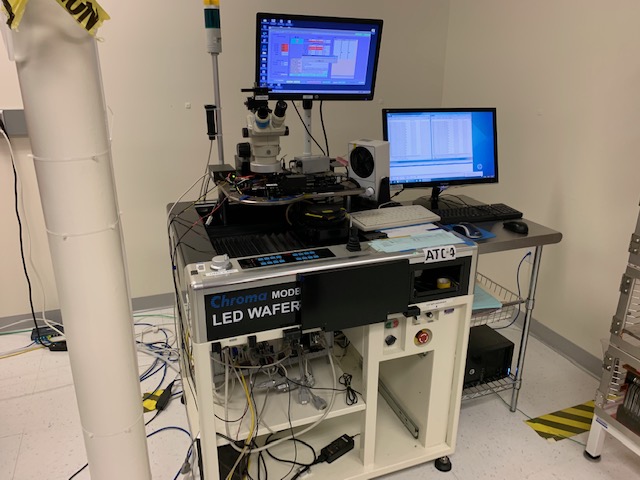

- Chroma LED Wafer Probe

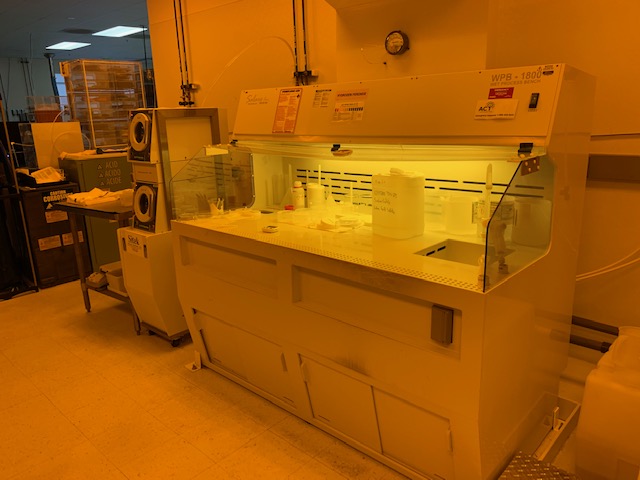

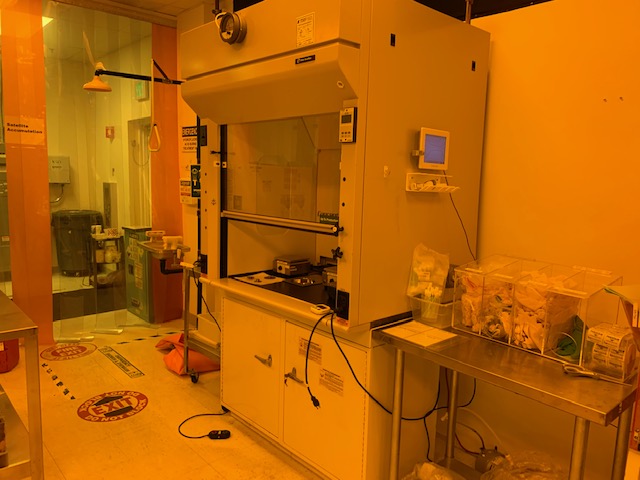

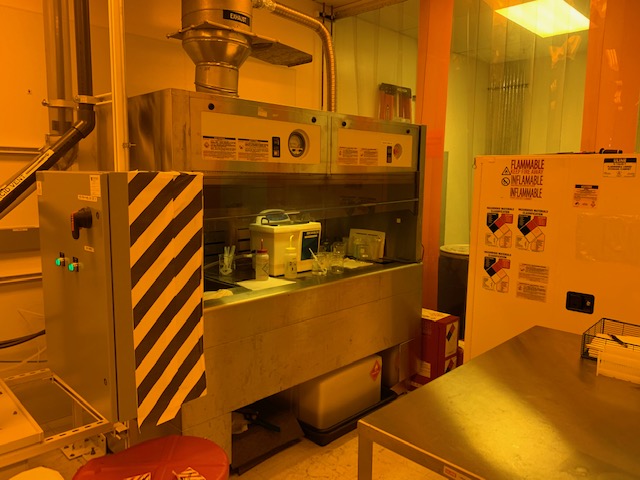

- Amerimade Wet Bench Model FH-6FT-SS

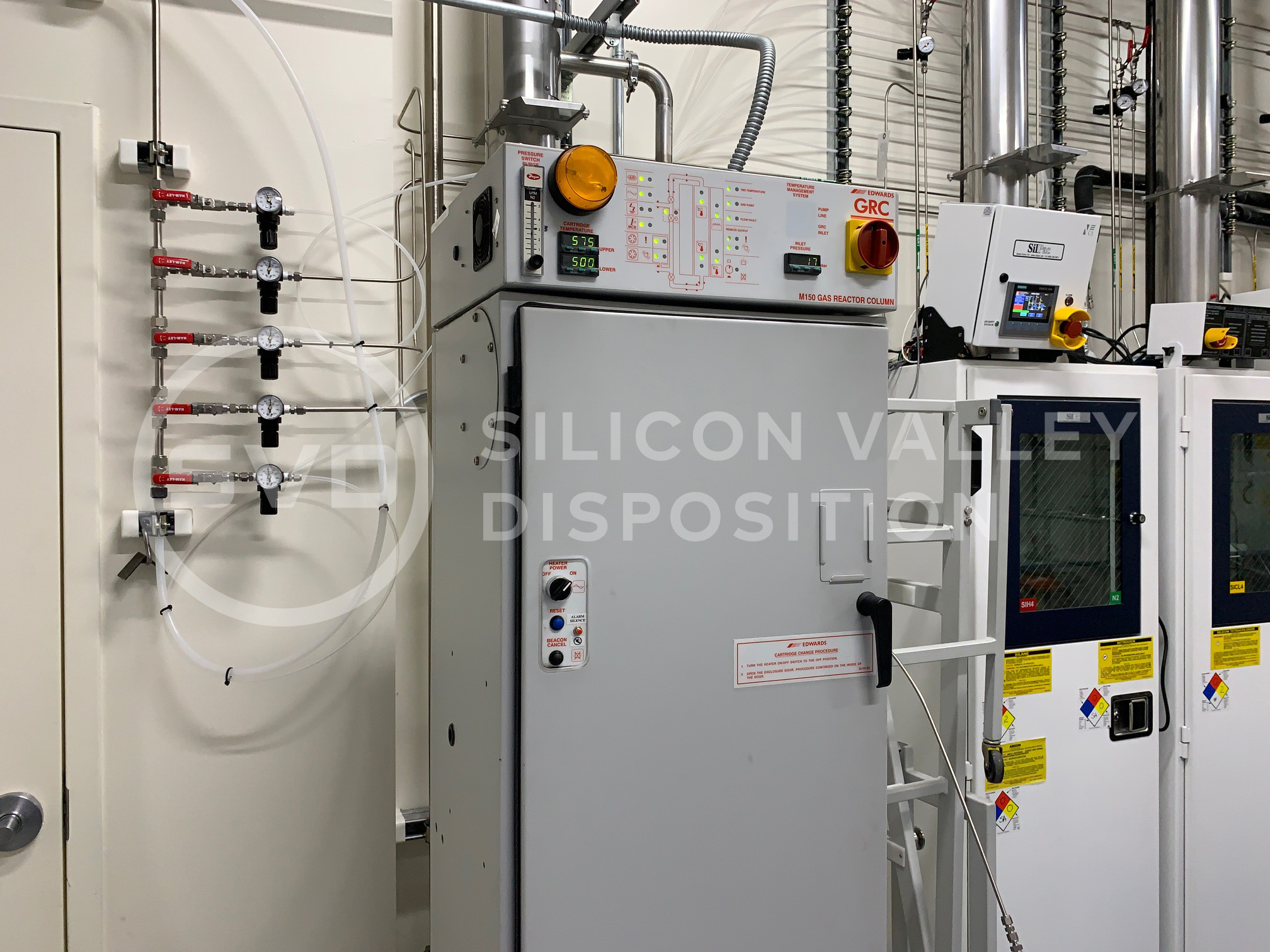

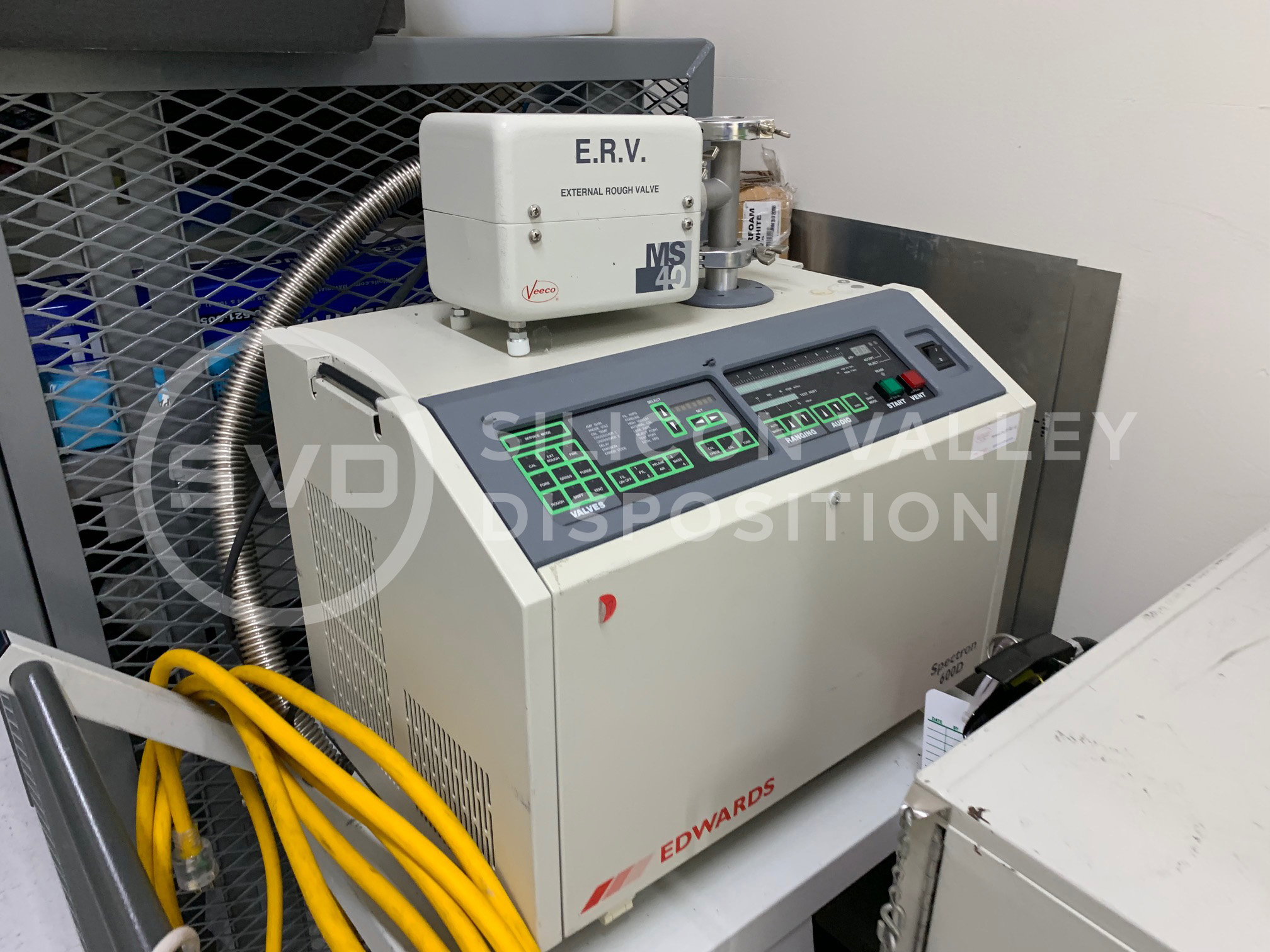

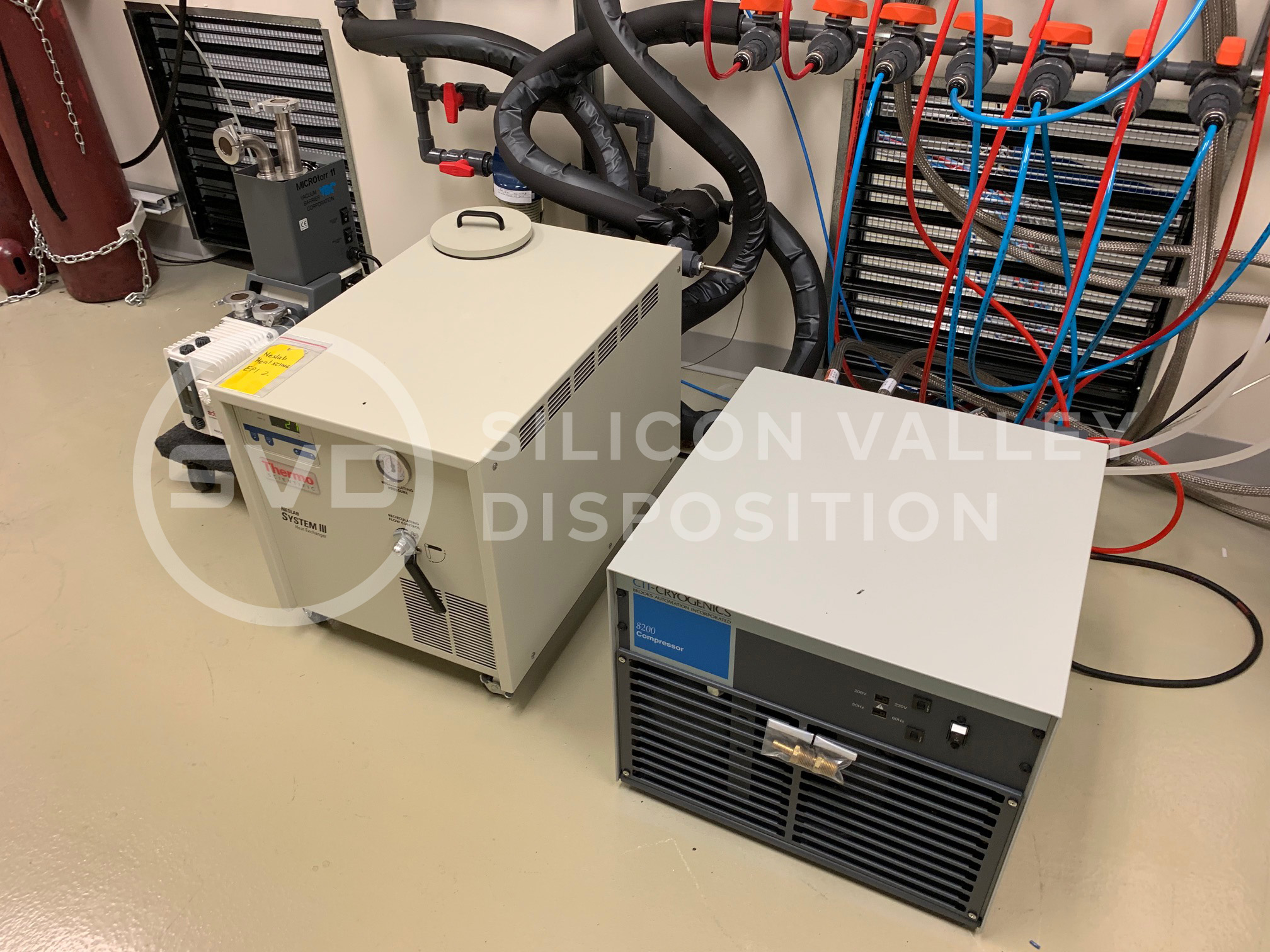

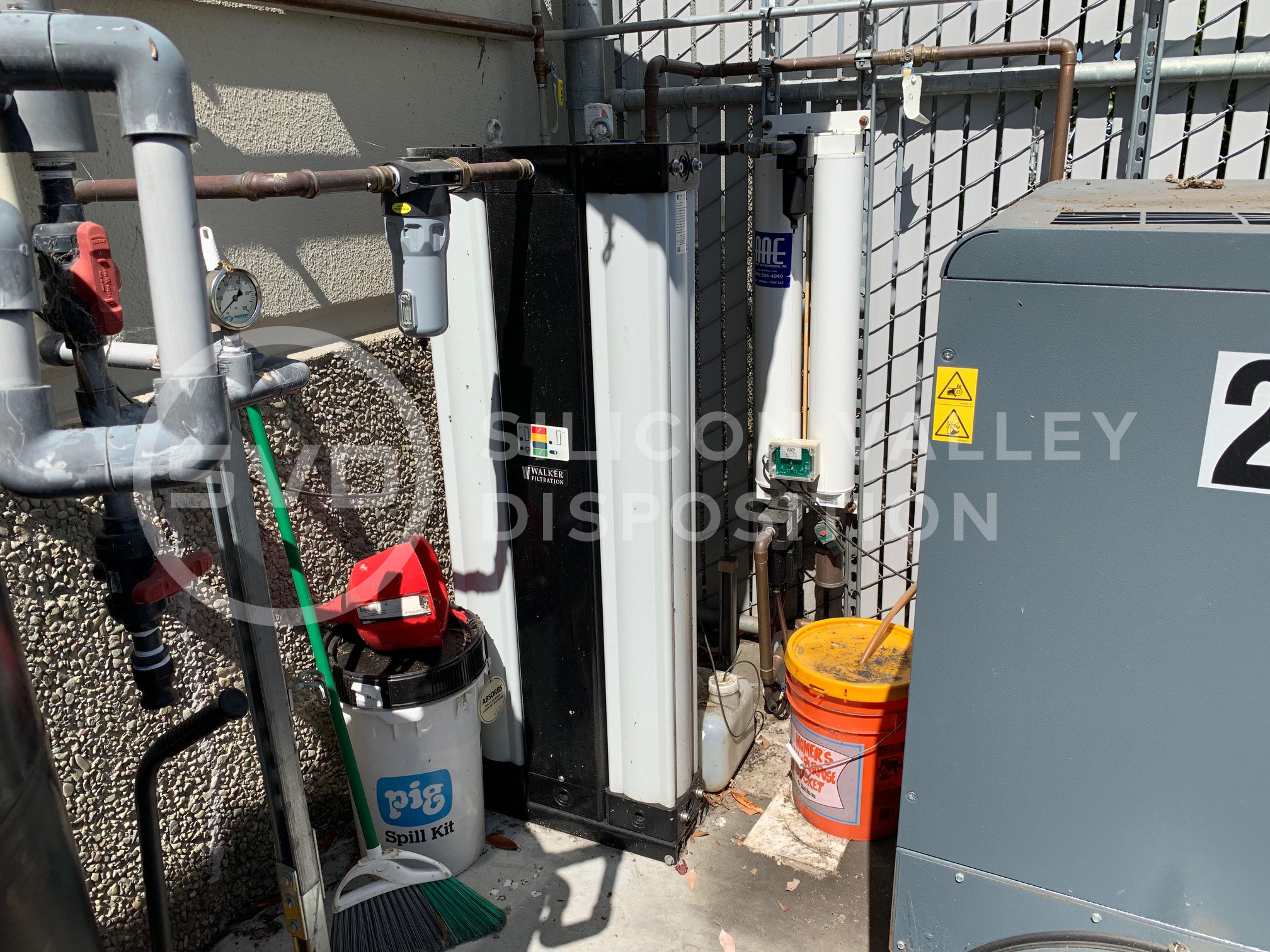

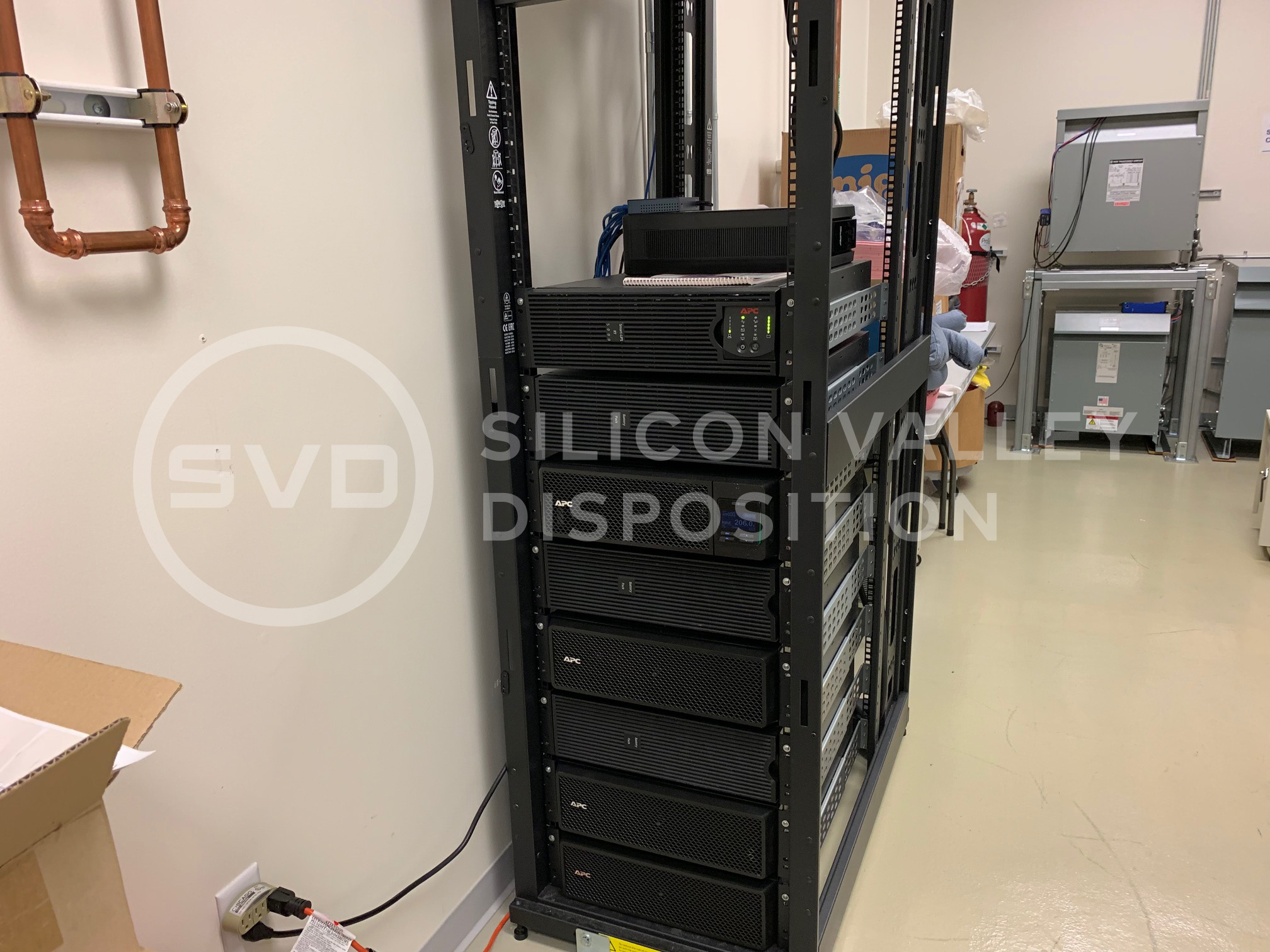

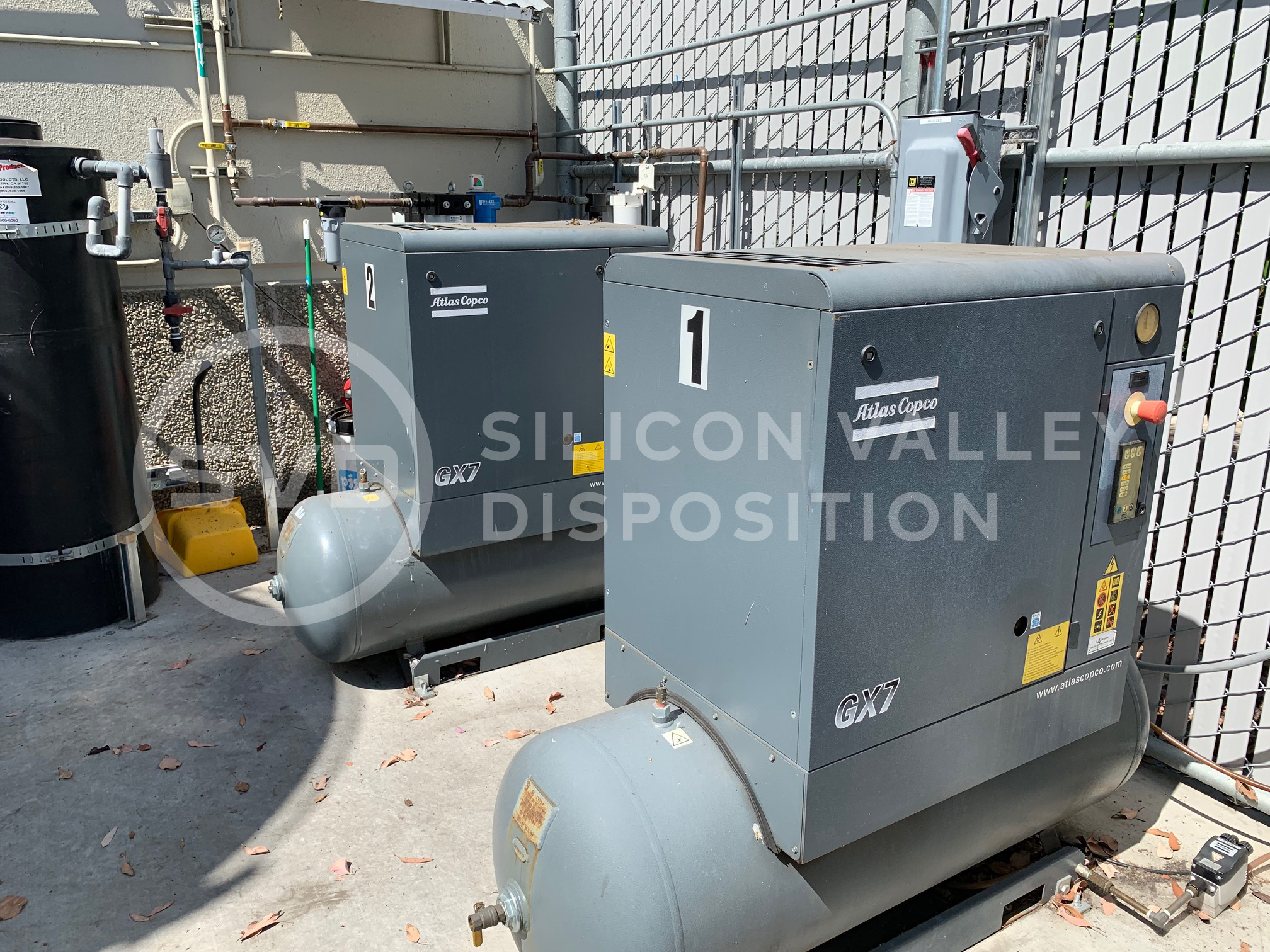

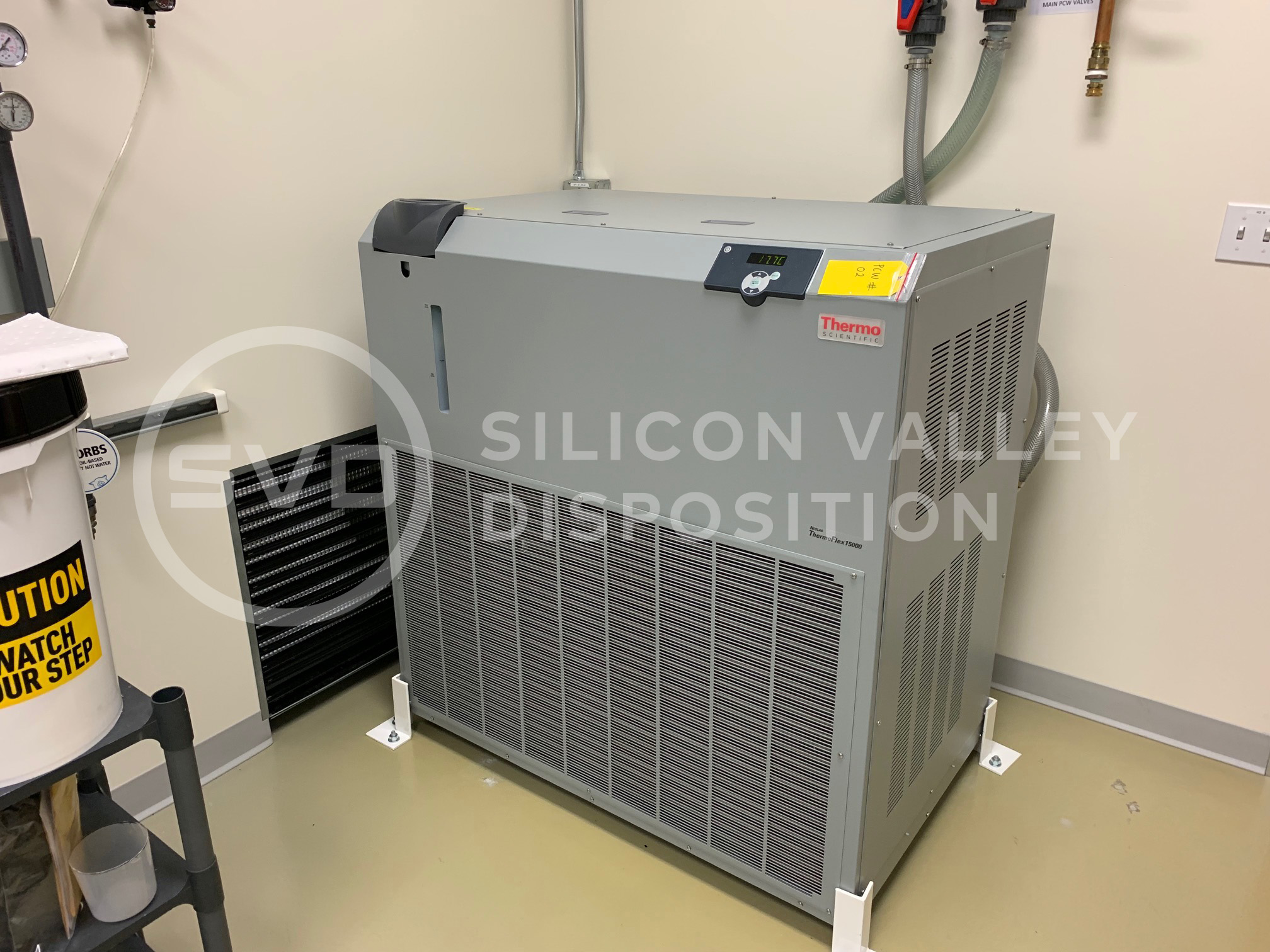

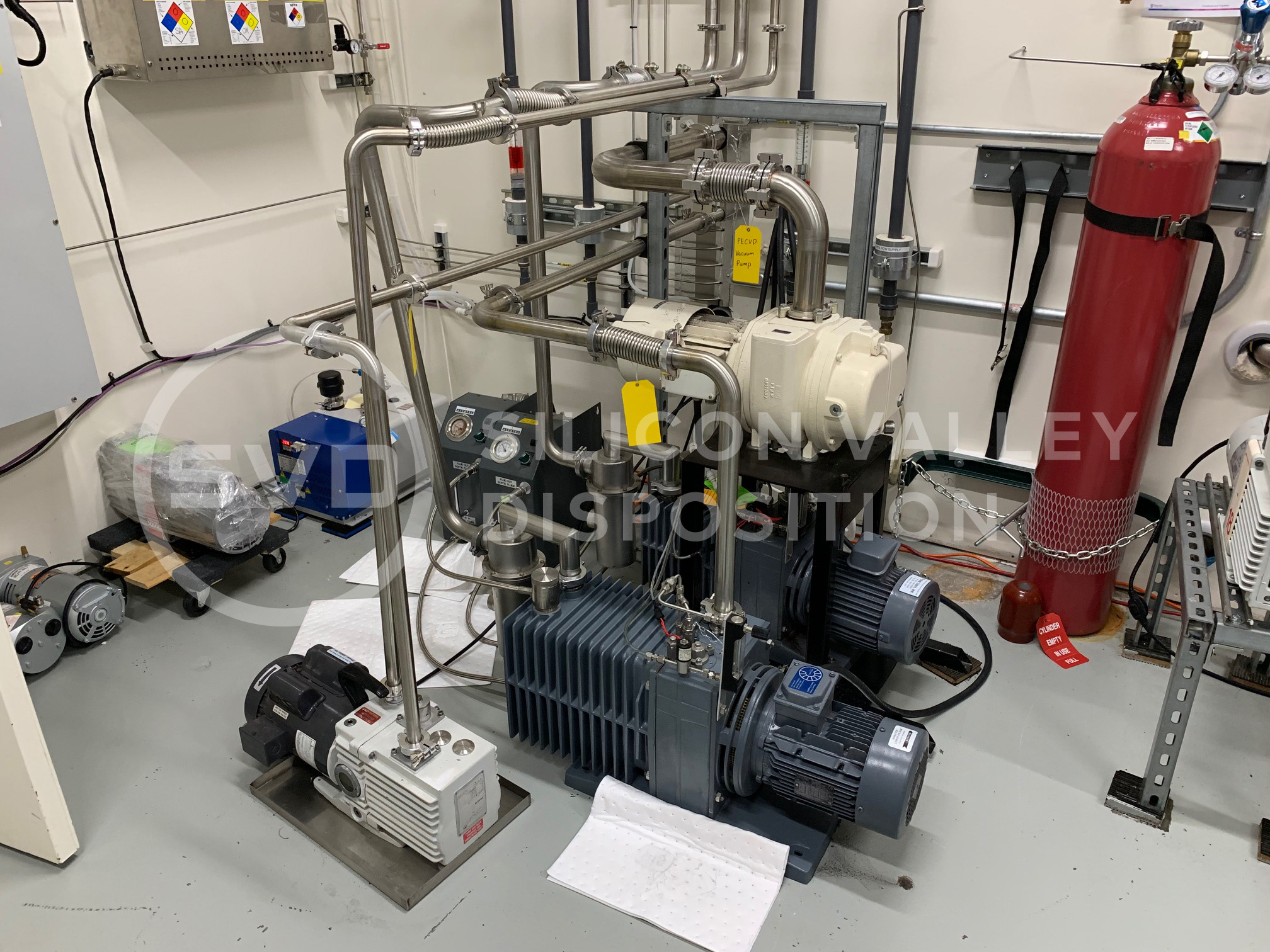

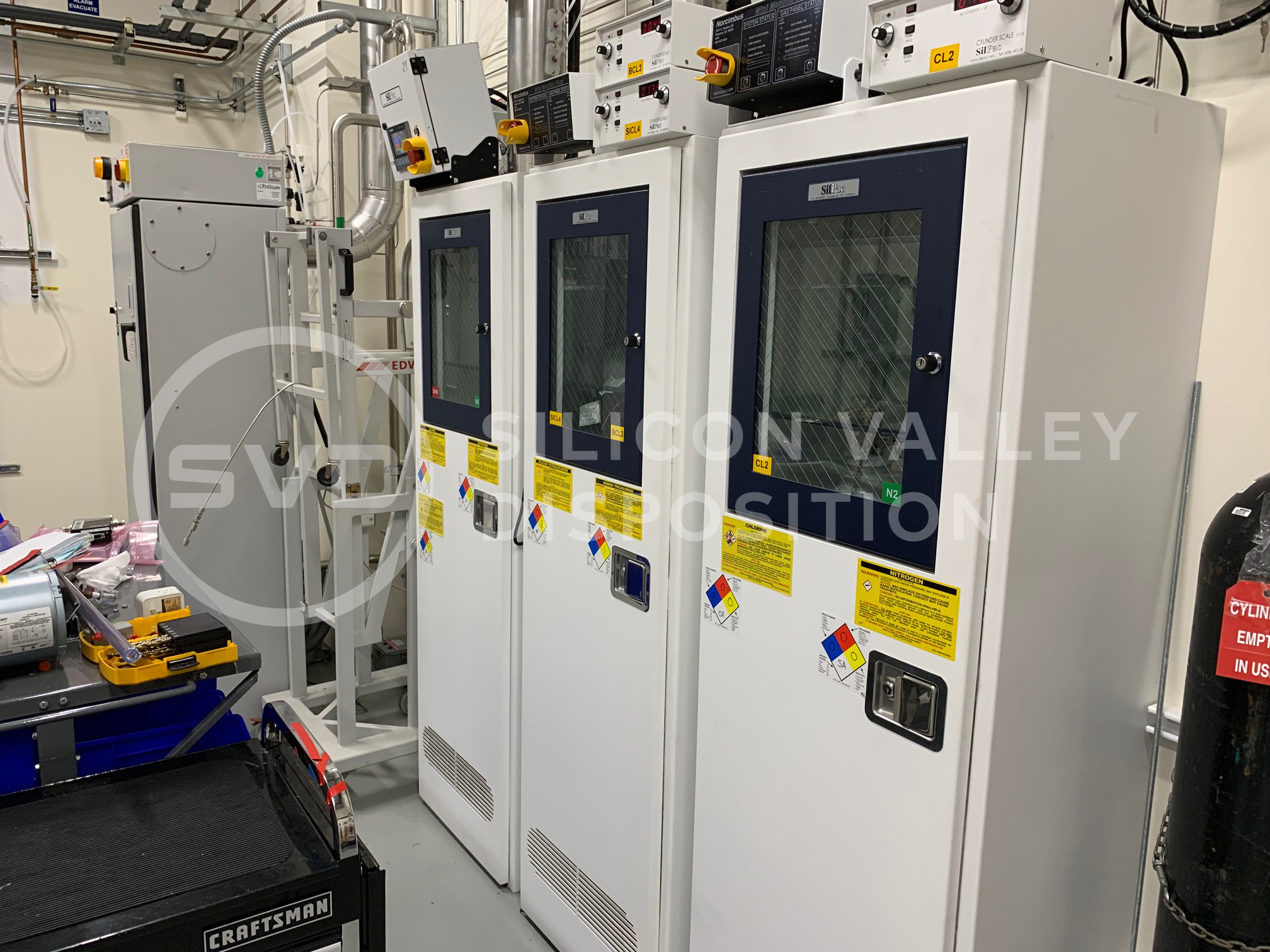

- Facility support, Air Compressors, Vacuum Pumps, Chillers, Gas Cabinets
Have similar assets to sell? Start selling with SVD.
We make selling at auction simpler and better.
Company Overview
-
Leader in UV LED solutions for surface, air and water disinfection

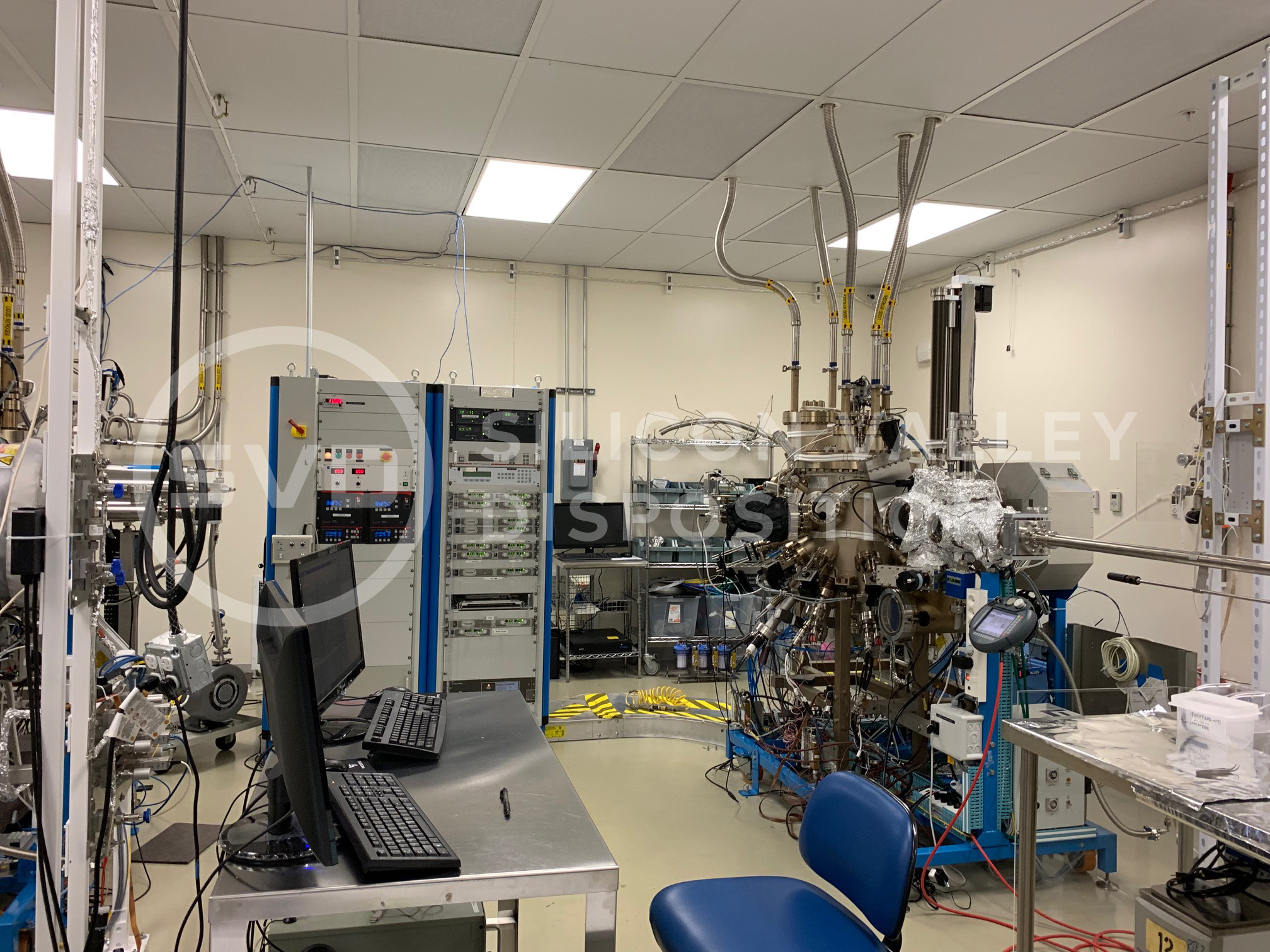

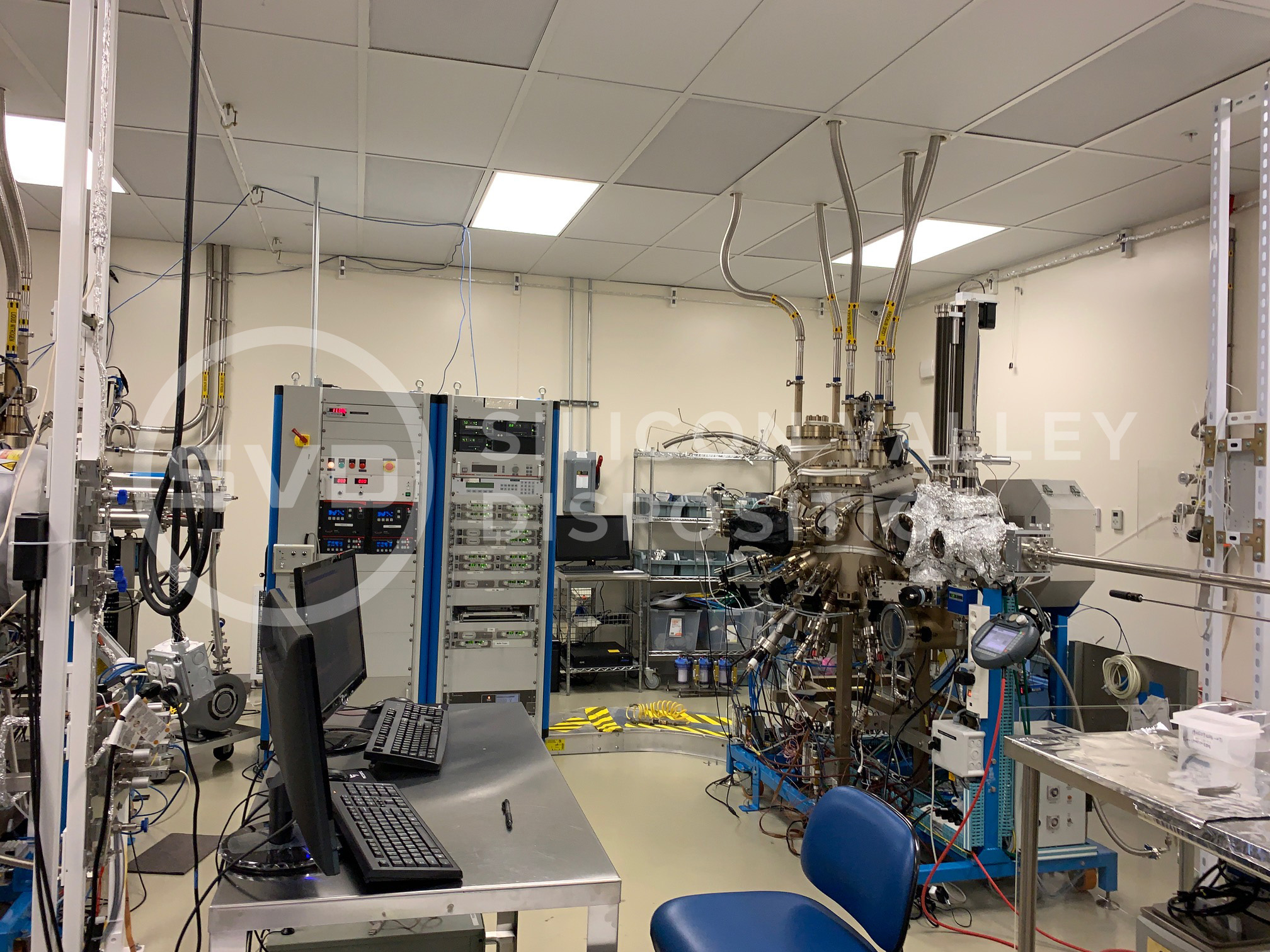

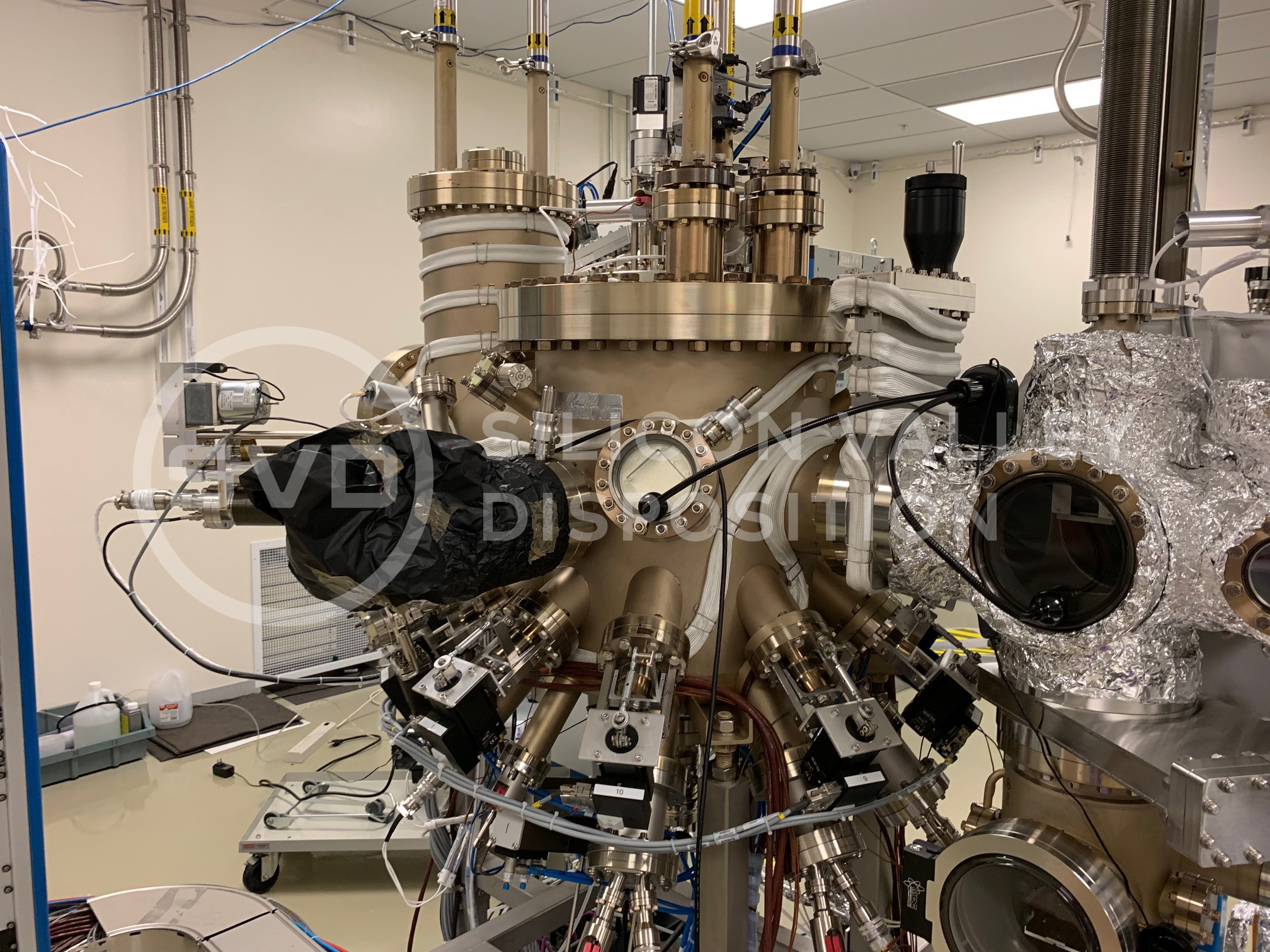

About the Riber Epi Reactors (MBE):
The two MBE EPI systems are custom built in the same way to optimize the growth of GaN, AlN and their alloy materials. Each system has 10 source ports. 3 of them are for 3.75 inch dopant cells. The other 7 are for 4.5 inch cells. Each system also equipped with 2 RF plasma sources to generate active nitrogen species. The solid material source on the systems include Ga, Al, Mg, Si and Ge. The Epi system has a 3-stage chamber design. Specifically, an entry chamber that is backed by a scroll pump and a turbo pump for substrate loading/unloading. A buffer-degas chamber with an ion pump for substrate cleaning. The main growth chamber is backed by a cryopump. The main chamber has a special designed LN2 cryopanel and pumping well system to ensure ultra high vacuum conditions. The lowest pressure achievable is ~1e-11 Torr which is limited by the pressure gauge. Each system has a motorized lift system to transfer a 8 wafer cassette between the entry and buffer chamber and a mechanical transfer rod system to transfer the wafer between the buffer and main chamber. Finally, the systems came with Riber Crystal XE software to control the growth process with programmable recipe capabilities.
For more information regarding the Riber Epi Reactor Systems, please contact:
Jian Yin, PhD
Epitaxial Scientist
RayVio Corporation
Email: jianyinjian@gmail.com
Cell: (909) 904-5099
